64x64 HDMI DVI SDI CVBS HDBaseT Fiber Hybrid Seamless Matrix switch

Customization
Seamless swtiching
Redundancy power supply
Redundancy inputs/outputs

Product Description:

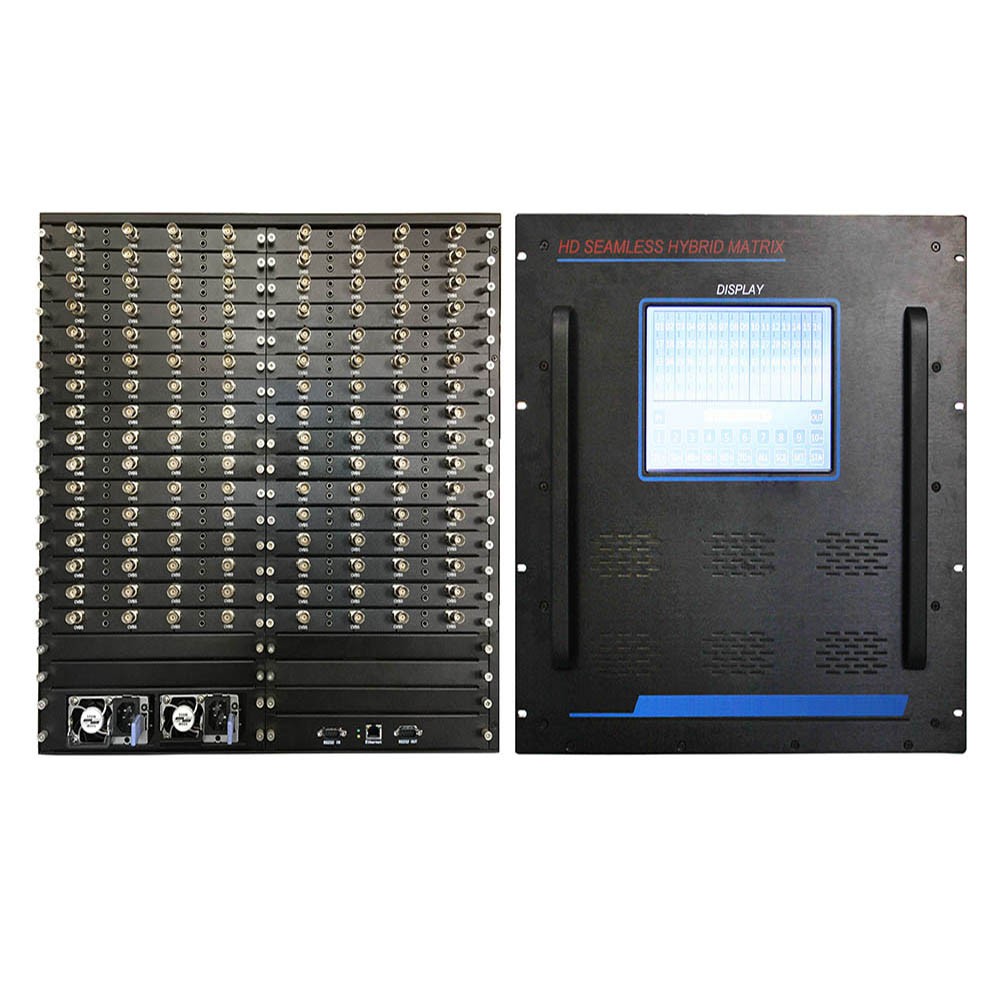

AM-SM6464 is an advanced seamless hybrid switching matrix designed to address the limitations of traditional video matrices. Here's an overview of its features:

Feature:

Full-Digital Switching: Ensures seamless transitions between input sources without any flicker, black screens, or signal interruptions.

Versatile Signal Compatibility: Supports input and output for various signals including CVBS, VGA, YPbPr, HDMI, DVI, SDI, HDbaseT, and optical fiber, offering comprehensive connectivity options.

Real-Time Seamless Switching: Provides instantaneous switching between input sources, ensuring smooth operation without any delays.

Adaptive Input Resolution: Automatically adjusts input resolution to match the requirements of connected devices, with adjustable output resolution for added flexibility.

HDMI Interface Compatibility: Supports HDMI 1.4 and DVI 1.0 standards, including HDCP 1.2 compliance, making it compatible with various devices such as Blu-ray players and supporting DeepColor.

High-Quality Digital Processing: Utilizes advanced digital processing for analog inputs (CVBS, VGA, YPbPr), offering high ADC sampling frequencies, 24-bit internal image processing, and true color reproduction with resolutions up to 1920x1200@60Hz.

Advanced CVBS Input Features: Integrates advanced 3D adaptive comb filter and de-interlace processing for CVBS inputs, automatically identifying PAL and NTSC standards.

SDI Input Support: Compatible with 3G/HD/SD-SDI formats, supporting various video standards including SMPTE 259M, 292M, 344M, and 424M, as well as audio embedding and de-embedding (SMPTE291).

Audio Integration: Supports input and output of analog audio signals, providing comprehensive audio integration capabilities.

User-Friendly Interface: Equipped with a touch-screen interface available in 4.3 inch (32x32) or 9.7-inch (72x72) sizes for intuitive operation and quick configuration.

Scene Store and Recall: Allows users to save and recall predefined configurations for efficient operation.

Control Options: Supports RS232 and Ethernet control with an open control protocol, facilitating integration with third-party control systems.

Site Protection: Features protection mechanisms to safeguard settings and configurations in case of power loss.

Industrial Cabinet Design: Housed in a standard plug-in industrial cabinet, with 1 card and 4 channels, ensuring durability and ease of installation.

Redundant Power Supply (Optional): Offers optional 1+1 redundant power supply for enhanced reliability in mission-critical applications.

Components of Equipment
Cabinet

Size(LDH)	Maximum input channel	Maximum output channel
3U(43x43x13cm)	16	16
5U(43x43x22cm)	32	32
11U(43x43x49cm)	72	72
20U(43x43x90cm)	144	144

Video Input Signal

CVBS input
Impedance	75Ω
Level	1Vp-p
TV System	Adaptive NTSC, PAL
Interface type	BNC
YPbPr input
Impedance	75Ω
Level	0.7V
Resolution	480i,576i,480P,576P,720P,1080i50/60, 1080P25/30/50/60
Sync Type	SOG
Interface type	DB15FM,(1-Cr,2-Y,3-Cb)
VGA input
Impedance	75Ω
Level	0.7V
Resolution	Common resolution of VESA, 640x480@60Hz～1920x1200@60Hz
Sync Type	Independent horizontal and vertical signal
Interface type	DB15FM
HDMI/DVI input
Clock frequency	25Mhz-225Mhz
Standards	DVI1.0 HDMI1.4 HDCP1.2
Interface type	Type A 19pin HDMI or DVI-D
SDI input
Bit Rate	143Mbps～2.97Gbps
Standards	SMPTE 259M、292M、344M、424M, compatible with SMPTE291 in audio
Interface type	BNC
HDBaseT iuput
Transmission distance		≤100m (cat5,cat6)
Max resolution		1920x1080@60
HDCP standard		HDCP1.2
Optical fiber input
Optical interface		LC
Wave length		850nm,1310nm，1550nm are optional
Transmission mode		Multi-mode and single-mode are optional
Rate		3Gbps
Transmission distance		2Km,10Km,20Km,40Km,80Km are optional

Analog Audio Input

Interface	3.5mm stereo jack
Level	0.5-2.0Vp-p
Impedance	600Ω
sampling frequency	48Khz

Video Output Signal

YPbPr output
Impedance	75Ω
Level	0.7V
Resolution	576i,720P50/60,1080i50/60, 1080P25/30/50/60
Sync Type	SOG
Interface type	DB15FM,(1-Cr,2-Y,3-Cb)
VGA output
Impedance	75Ω
Level	0.7V
Resolution	1024x768,1280x1024,1440x900,1360x768,1680x1050, 1600x1200,1280x720,1920x1080,1920x1200
Sync Type	Independent horizontal and vertical signal
Interface type	DB15FM
HDMI/DVI output
Clock frequency	25Mhz-225Mhz
Standards	DVI1.0 HDMI1.4 HDCP1.2
Resolution	1024x768,1280x1024,1440x900,1360x768,1680x1050, 1600x1200,1280x720,1920x1080,1920x1200,4k, 576i,720P50/60,1080i50/60, 1080P25/30/50/60
Interface type	Type A 19pin HDMI or DVI-D
SDI output
Bit Rate	143Mbps～2.97Gbps
Standards	SMPTE 259M、292M、344M、424M , compatible with SMPTE291 in audio
Interface type	BNC
HDBaseT output
Transmission distance		≤100m (cat5,cat6)
Max resolution		1920x1080@60
HDCP standard		HDCP1.2
Optical fiber output
Optical interface		LC
Wave length		850nm,1310nm，1550nm are optional
Transmission mode		Multi-mode and single-mode are optional
Rate		3Gbps
Transmission distance		2Km,10Km,20Km,40Km,80Km are optional

Analog Audio Output

Interface	3.5mm stereo jack
Level	0.5-2.0Vp-p
Impedance	600Ω

Power Consumption

Hybrid input card	8W/card
SDI input card	10W/card
HDBaseT input card	30W/card
Optical input card	20W/card
Hybrid output card	10W/card
HDBaseT output card	20W/card
Optical fiber output card	20W/card
3U without input or output card	20W
5U without input or output card	20W
10U without input or output card	40W
20U without input or output card	80W
