hifi headphones decoder

DSD256/bit, PCM 384KHz/32bit
Adapt to Windows / Android / IOS
Sampling rate 192KHz/24bit
HIFI 2.0 outouput
Bluetooth Apt-X/LDAC

Product Description:

AM-HIFIQ5

Hifi headphones decoder AMP

FEATURES：

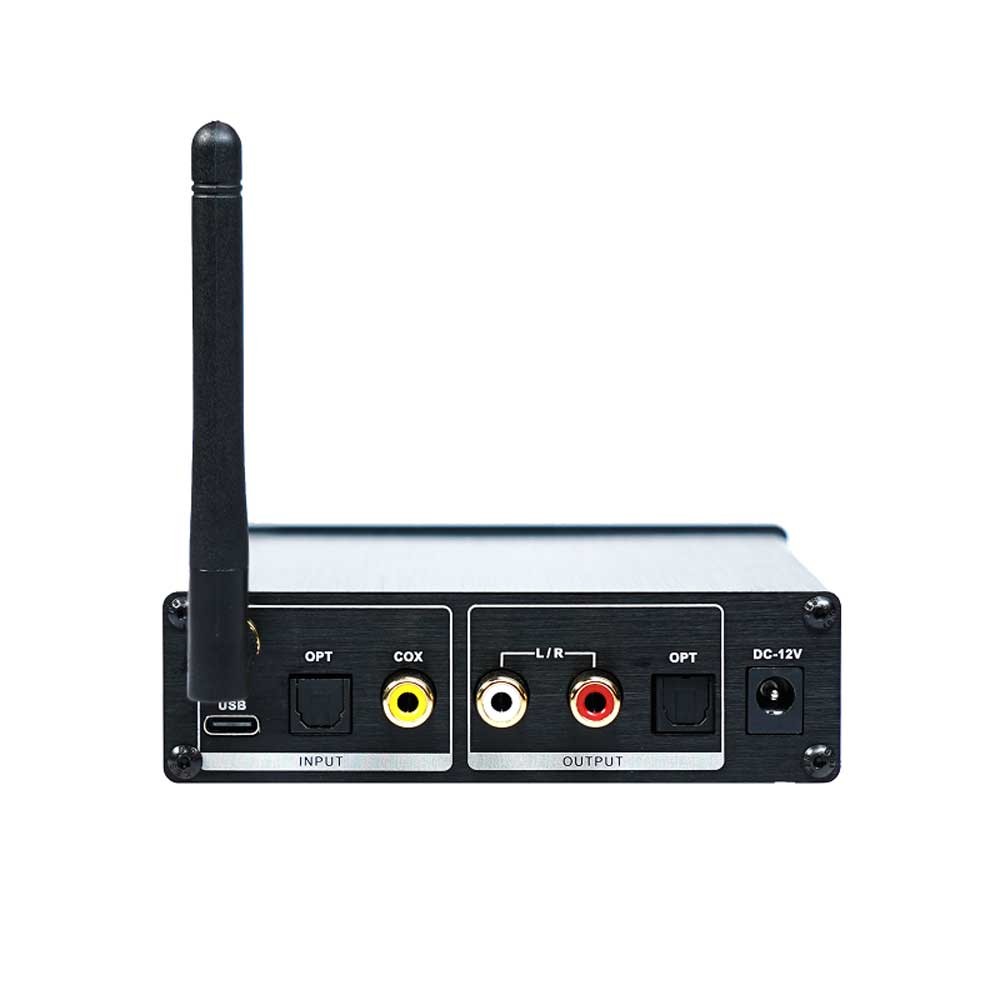

Input port : Coaxial + Optical + USB + Bluetooth
Output port : Optical + RCA +3.5mm phone +6.35mm phone ( All output simultaneously )
Bluetooth protocol : LDAC / apt x - HD / apt X - Adaptive / apt X - LL / apt X / AAC / SBC etc .
Bluetooth sampling rate :44.1khz/48khz/96khz( only LDAC )
Bluetooth sampling bit :16bit/24bit( maxim )
Bluetooth version :5.1( compatible with version 5.0/4.2 etc )
Bluetooth transmission distance :<15meters
USB sound card support system : Windows / Android / IOS etc .
USB sound card sampling rate / bit : DSD up to DSD256/1bit, PCM up to 384KHz/32bit
OPTICAL / COAXIAL sampling rate / bit : up to 192KHz/24bit
DAC sampling rate / bit : DSD up to DSD256/1bit, PCM up to 384KHz/32bit
DAC SNR or DNR :+127dB
DAC THD + N :-120dB
OPA supply : DC ±9V
Headphone supply : DC ±9V
Headphone SNR or DNR :120dB
Headphone impedance :16-300Ω
Headphone power : up to 500mW(32Ω)
Power supply : DC 12V/1A
Product size :138*112*34mm
Package size :218*193*54mm
Product weight :0.35kg
Package weight :0.55kg
