  • 2x4 Video Wall Controller splicing processor 2pip
2x4 Video Wall Controller splicing processor 2pip

2x4 Video Wall Controller splicing processor 2pip

2 PIP display modes
2x4 8monitors
AIAO function

Product Description:

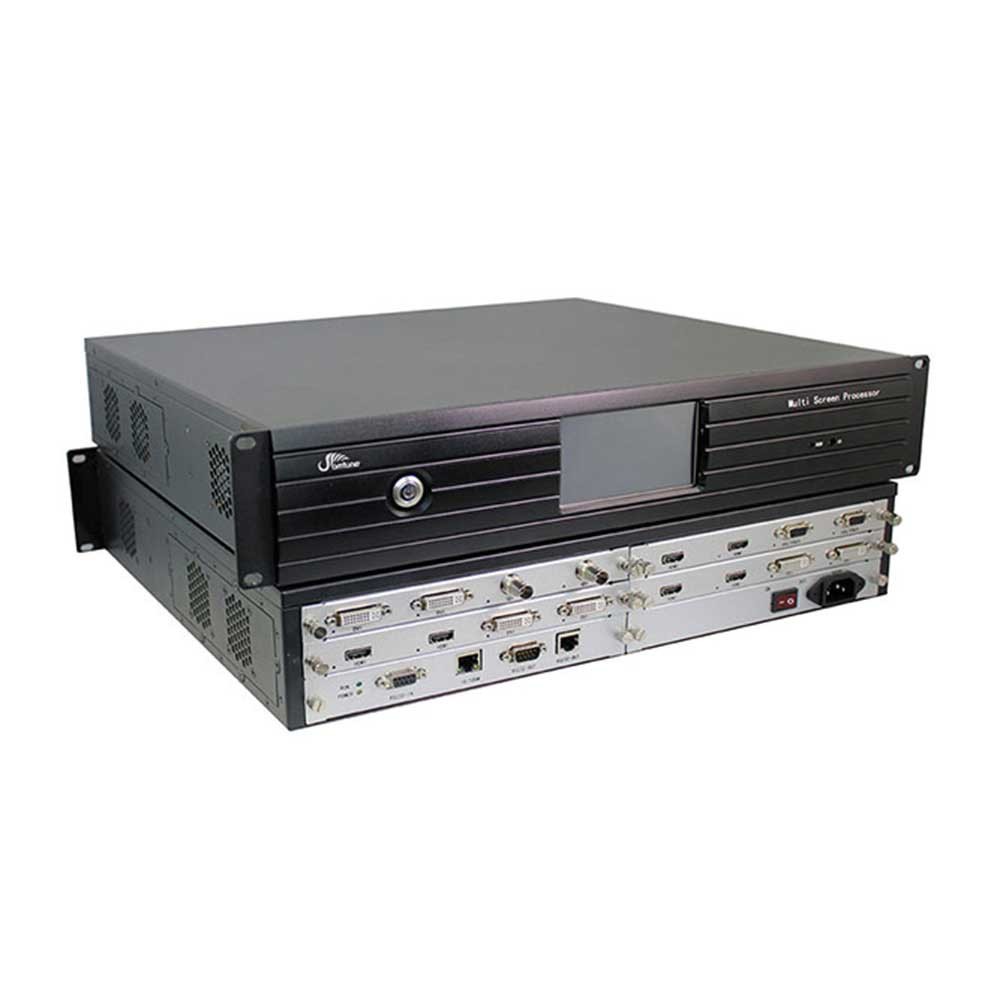

AM-SP208

HD-Video Controller Splicing Processor is an advanced hardware-based image processing device designed for multi-window splicing and roaming of dynamic images across multiple screens.



Feature:


Hardware-Based Processing: The device operates purely on FPGA architecture, ensuring fast processing and reliable performance without relying on an operating system. This eliminates concerns such as crashes, conflicts, or viruses that may occur with traditional computer-based systems.


Multi-Input Compatibility: Supports various input sources including DVI, VGA, HDMI, SDI, YPbPR, CVBS, and IP, offering flexibility in connecting different types of devices.


High Bandwidth: Each channel features a unique 6G bandwidth, ensuring high-quality transmission and processing of video signals.


Pixel-Level Synchronization: Utilizes built-in clock synchronization technology to ensure precise synchronization across multiple screens, achieving pixel-level accuracy in splicing.


Flexible Display Modes: Supports multiple Picture-in-Picture (PIP) display modes, enabling the simultaneous display of multiple sources on a single screen or across multiple screens.


Any In Any Out (AIAO) Function: Allows for displaying any captured picture in a specific area on the screen, providing customizable display options.


Mosaic Roaming Display: Enables flexible roaming across screens and windows, allowing for seamless transitions and scaling of input signals.


On-Screen Display (OSD) Function: Supports overlaying OSD for each input signal, facilitating source management and identification.


Continuous Operation: Designed for 24/7 continuous operation, making it suitable for mission-critical applications such as command and control centers, monitoring centers, etc.


Redundant Power Supply: Equipped with dual power supply redundancy backup to ensure uninterrupted operation in case of power failure.


Standardized Chassis Design: Features a standard 19-inch chassis design for easy installation and stable performance.


High-Speed Backplane Interconnection: Utilizes high-speed backplane interconnection technology for efficient signal exchange and processing.


Flexible Board Selection and Design: Allows for customizable selection of input boards based on source types, and features a modular design for easy upgrades, expansions, and maintenance.


VGA Automatic Adjustment: Incorporates automatic adjustment technology for VGA signals to align RGB video and HV scan signals, ensuring optimal image quality without distortion or misalignment.


Parameters


Model series

AM-SP208

Input signal(optional)

HDMI/SDI/DVI/VGA/AV/YPbPr

Input resolution

4k, 1080p,1024x768,commonly used resolutions

Output signal format

HDMI/SDI/DVI/VGA/AV/YPbPr

Output resolution

Up to 1920*1200/60HZ, 4k optional

System control software

Special control software

Power Supply

Redundant power supply 110-220VAC, 50/60Hz

Working temperature

-20°C——60°C

Working Humidity

5-95%

Case specification

3U/5U/11U/20U standard rack mount chassis

Serial Control Interface

RS-232,9-pin female, Type-D

Working time

365*7*24hrs
