Headphone Amp DSD Decoder

DSD256/bit, PCM 384KHz/32bit
Adapt to Windows / Android / IOS
Sampling rate 192KHz/24bit
HIFI 2.0 outouput
Bluetooth Apt-X/LDAC

Product Description:

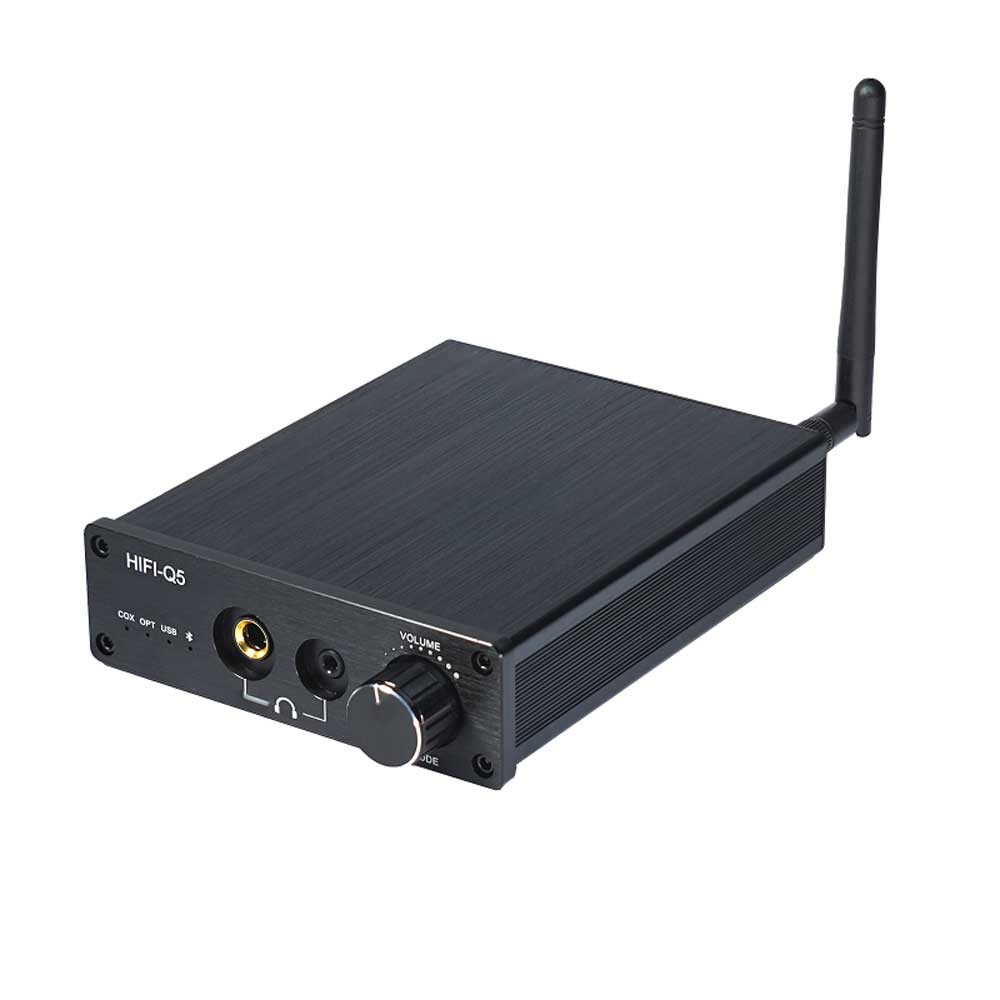

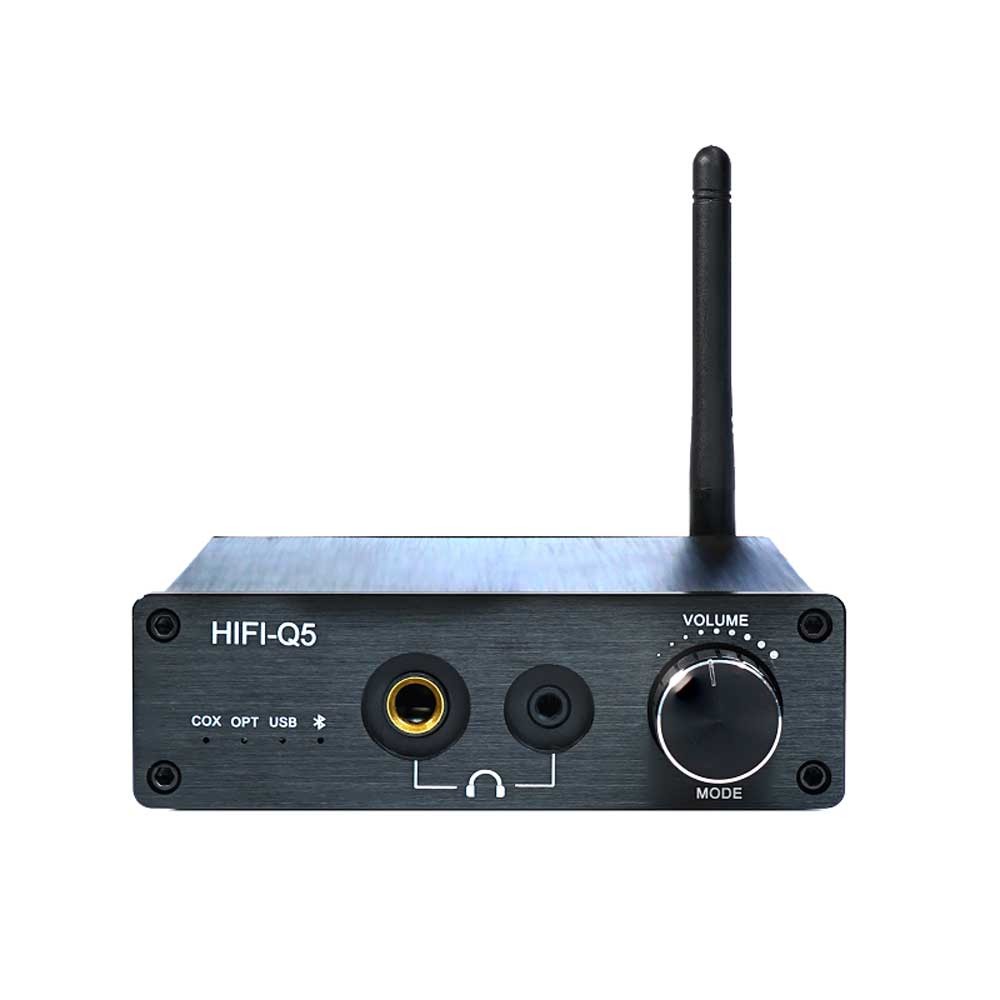

AM-HIFIQ5

Hifi headphones decoder AMP


FEATURES:

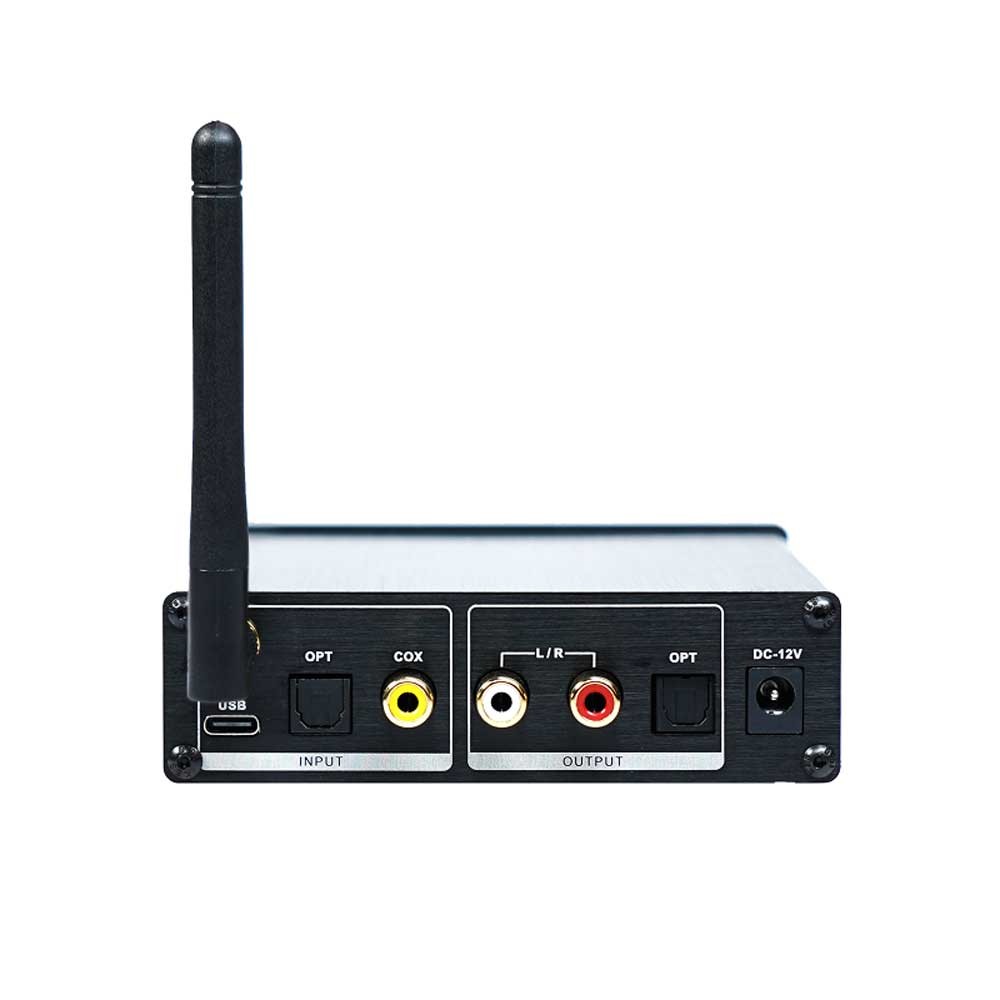

  • Input port : Coaxial + Optical + USB + Bluetooth

  • Output port : Optical + RCA +3.5mm phone +6.35mm phone ( All output simultaneously )

  • Bluetooth protocol : LDAC / apt x - HD / apt X - Adaptive / apt X - LL / apt X / AAC / SBC etc .

  • Bluetooth sampling rate :44.1khz/48khz/96khz( only LDAC )

  • Bluetooth sampling bit :16bit/24bit( maxim )

  • Bluetooth version :5.1( compatible with version 5.0/4.2 etc )

  • Bluetooth transmission distance :<15meters

  • USB sound card support system : Windows / Android / IOS etc .

  • USB sound card sampling rate / bit : DSD up to DSD256/1bit, PCM up to 384KHz/32bit

  • OPTICAL / COAXIAL sampling rate / bit : up to 192KHz/24bit

  • DAC sampling rate / bit : DSD up to DSD256/1bit, PCM up to 384KHz/32bit

  • DAC SNR or DNR :+127dB

  • DAC THD + N :-120dB

  • OPA supply : DC ±9V

  • Headphone supply : DC ±9V

  • Headphone SNR or DNR :120dB

  • Headphone impedance :16-300Ω

  • Headphone power : up to 500mW(32Ω)

  • Power supply : DC 12V/1A

  • Product size :138*112*34mm

  • Package size :218*193*54mm

  • Product weight :0.35kg

  • Package weight :0.55kg
