16 Channels SDI VGA Ypbpr HDMI Multi-viewer

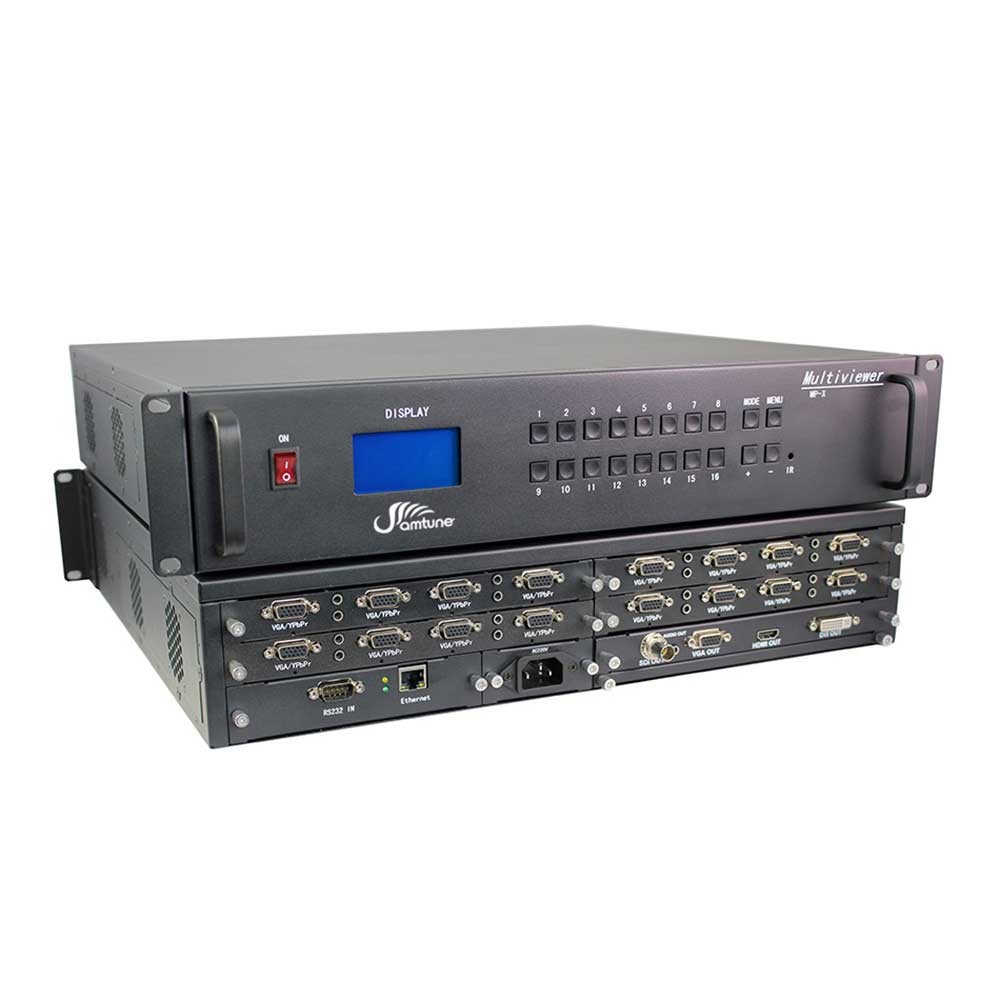

AM-PXV16 16 Channels SDI VGA Ypbpr HDMI Multi-viewer

Brief introduction

Discover the AM-PXV16 high-definition multi-video multi-viewer, a professional graphics processing device designed to seamlessly combine multiple video signals into a single high-definition output. With customizable window sizing, display positioning, and video scaling capabilities, users can tailor their viewing experience to their exact preferences. Experience uniform HD video output with the AM-PXV16 multi-viewer.

Feature:

• Flexible Card Structure: Easily expandable with one card featuring 4 inputs. Fits 2 inputs in a 1U chassis and 4 cards in a 2U chassis for up to 16 inputs.

• Versatile Input Support: Compatible with various input signal sources including CVBS, HDMI (DVI), VGA (YPbPr), and SDI, allowing for mixed input configurations.


• High-Quality Image Processing: Internal 10-bit processing ensures true color reproduction for exceptional visual fidelity.


• Extensive Input Compatibility: Supports a wide range of resolutions and standards including VGA (YPbPr) up to UXGA@75Hz/WUXGA@60Hz, HDMI (DVI) with HDCP1.2 compliance, and SDI supporting 3G/HD/SD-SDI at rates from 143Mbps to 2.97Gbps.


• User-Friendly Controls: Enables quick operation through local buttons or a convenient remote control, with additional support for computer software control via RS232 and Ethernet interfaces.


• Enhanced Security: Includes power-off site protection for added reliability in various environments.


• Customizable Display: Offers support for custom screen sizes, layouts, and scene saving, allowing users to tailor their viewing experience to their preferences.


• 4K Output Capability: Supports 4K (3840x2160/30) output, providing high-resolution display options (note: 2K output is not compatible)


Parameters
