16 monitors with 4 roaming Windows PIP HD Video Splicing Processor

Multi-Window Splicing
4 Roaming Capabilities
Precision Synchronization

Product Description:

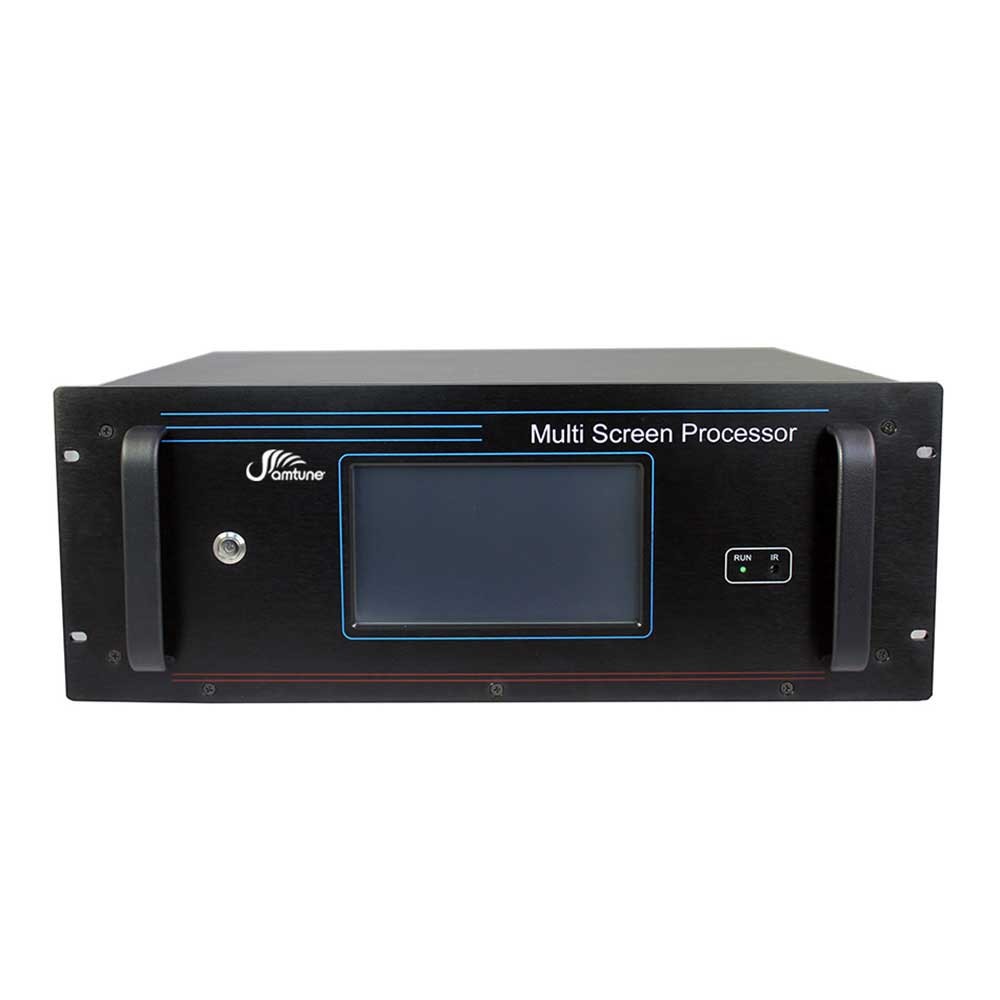

16 monitors with 4 roaming Windows PIP HD Video Splicing Processor


AM-SP416


Introduction

The HD-Video Controller Splicing Processor is a high-performance, FPGA-based hardware device designed for advanced video processing tasks such as multi-window splicing and roaming across multiple screens. It supports a variety of input sources including DVI, VGA, HDMI, SDI, YPbPR, CVBS, and IP, each with a dedicated 6G bandwidth. Utilizing built-in clock synchronization technology, it ensures pixel-level precision across displays, making it suitable for command and control centers in various industries. Optimizing this device involves regular firmware updates, efficient bandwidth management, precise synchronization, and ensuring compatibility with different display terminals.


Feature:

  • 4x4 Roaming PIP Display: Seamlessly display 16 screens with 4 windows roaming Picture-in-Picture (PIP) modes.

  • AIAO Functionality: Any In Any Out function allows displaying any captured picture in a specific area on the screen with precision.

  • Hardware-Based High-Speed Switching: Ensures fast startup speed and eliminates crashes, conflicts, and viruses with point-to-point serial bus unified switching architecture.

  • Flexible Mosaic Roaming Display: Cross-screen roaming across the wall with support for any input signal, including dynamic window opening and scaling.

  • OSD Functionality: Overlay characters for each input signal with On-Screen Display (OSD), facilitating convenient source management.

  • 24/7 Continuous Operation: Reliable performance with support for continuous 7x24-hour operation, ideal for control rooms, dispatch centers, and monitoring centers.

  • Standardized Chassis Design: Easy installation and stable performance ensured with a standard 19-inch chassis conforming to ANST/EIA RS-310-C/D.

  • Redundant Power Supply Backup: Equipped with dual power supply redundancy backup, ensuring uninterrupted operation even in case of power supply failure.

  • High-Speed Backplane Interconnection: Each channel boasts a unique 6G bandwidth, enabling high-capacity signal exchange through a 6G high-speed switching chip.

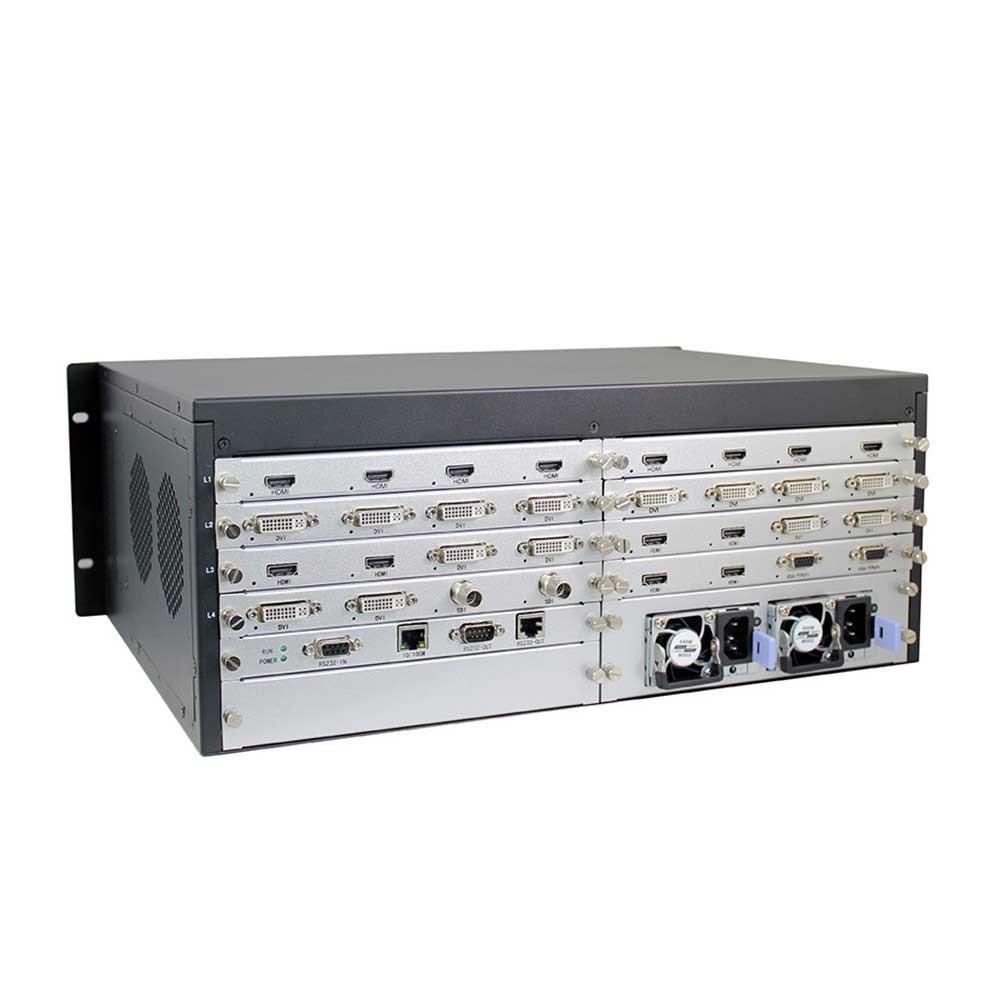

  • Flexible Board Selection: Select input boards according to source (DVI, VGA, HDMI, SDI, YPbPR, CVBS) in any combination of two inputs per card.

  • Built-in Clock Synchronization Processing: Achieve seamless switching and continuity of output with unified clock processing technology.

  • Flexible Board Design: Plug-in cards for main modules allow for easy upgrades, expansions, and maintenance without disassembling the chassis.

  • VGA Automatic Adjustment: Unique VGA signal automatic adjustment technology aligns RGB video and HV scan signals, ensuring accurate image display without distortion.


Parameters


Model series

AM-SP416

Input signal(optional)

HDMI/SDI/DVI/VGA/AV/YPbPr

Input resolution

4k, 1080p,1024x768,commonly used resolutions

Output signal format

HDMI/SDI/DVI/VGA/AV/YPbPr

Output resolution

Up to 1920*1200/60HZ, 4k optional

System control software

Special control software

Power Supply

Redundant power supply 110-220VAC, 50/60Hz

Working temperature

-20°C——60°C

Working Humidity

5-95%

Case specification

3U/5U/11U/20U standard rack mount chassis

Serial Control Interface

RS-232,9-pin female, Type-D

Working time

365*7*24hrs
