Product Description:

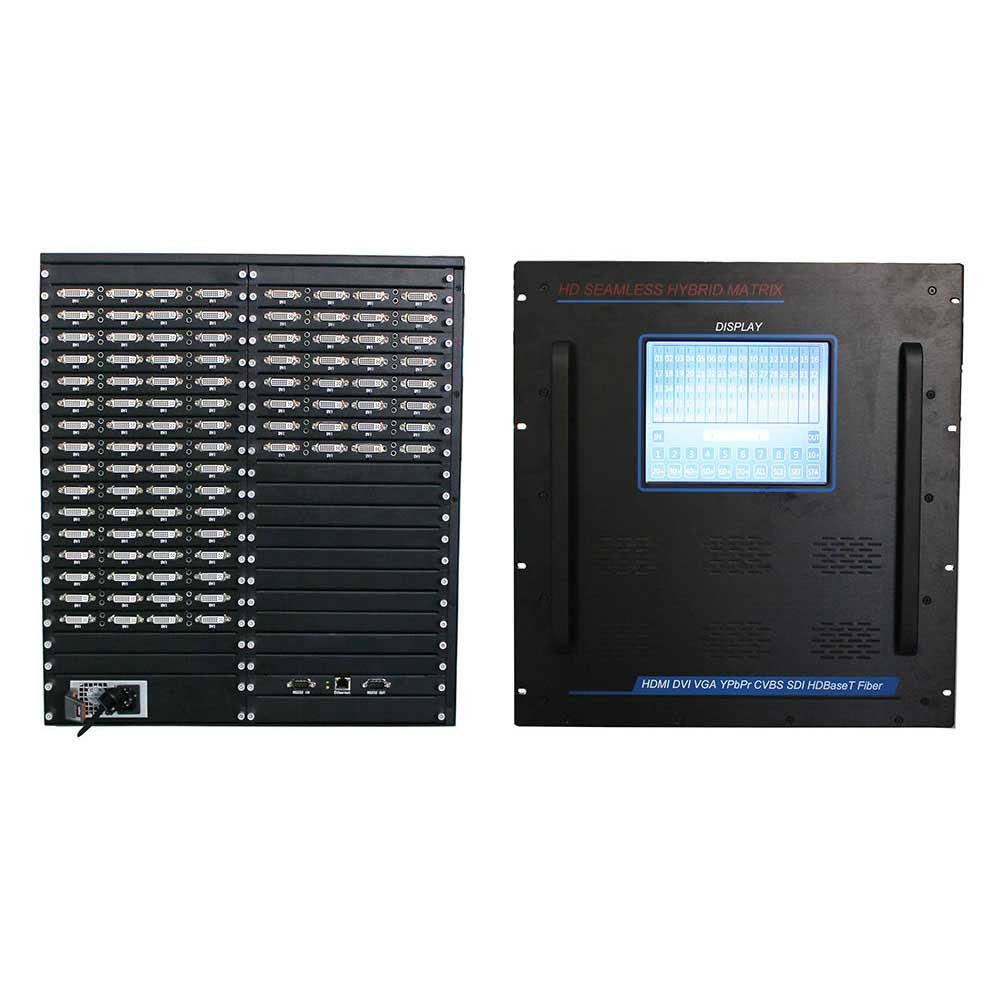

HD-Video Seamless Hybrid Matrix

AM-DM6432

Brief introduction
Traditional video matrix will generate flashing, black, jitter, delay and signal interruption and other shortcomings in switching process. the new seamless hybrid switching matrix, has completely overcome the shortcomings of traditional matrix, with no flicker, no black, no delay and no signal interruption in switching process. And it can achieve the input and output of CVBS, VGA, YPbPr, HDMI, DVI, SDI, HDbaseT and optical fiber.

Feature:
◆ Full-digital switching;
◆ Available input and output for any signal;
◆ Real-time seamless switching;
◆ Adaptive input resolution, adjustable output resolution;
◆ HDMI interface, compatible with DVI1.0 and HDMI1.4, support HDCP1.2, support Blu-ray player and support DeepColor;
◆ Digital processing of analog input for CVBS, VGA and YPbPr, ADC sampling frequency up to 205Mhz, 24-bit internal image processing, true color reproduction, the highest resolution up to 1920x1200@60Hz;
◆CVBS input integrates advanced 3D adaptive comb filter and de-interlace processing, automatic identification for PAL, NTSC;
◆ SDI input, supports 3G/HD/SD-SDI, the rate of 143Mbps ~ 2.97Gbps, compatible with serial video standards, e.g. SMPTE 259M, 292M, 344M, 424M, ITU R BT.601, ITU R BT.1120;
◆ Support input and output of analog audio;
◆ Support SDI audio embedding and de-embedding (SMPTE291);
◆ 4.3 inch (32x32) /9.7 inch (72x72), touch-screen operation, beautiful and fast.
◆ Support scene store and recall.
◆ Support RS232 and Ethernet control, open control protocol, beneficial for third-party serial control;
◆ Support site protection when power off;
◆ Standard plug-in industrial cabinet, 1 card and 4 channels;
◆ 1+1 redundant power supply (optional).



Components of Equipment
Seamless hybrid matrix is consisted of main cabinet, input and output cards and communication card:

Input Cards:

◆ Hybrid input card (4 optional interfaces, CVBS, VGA, YPbPr, HDMI, DVI)
◆SDI input card
◆HDBaseT input card
◆Optical fiber input card

Output Cards:

◆ Hybrid output card (4 optional interfaces, CVBS, VGA, YPbPr, HDMI, DVI, SDI)
◆HDBaseT output card
◆Optical fiber output card

Communication card
◆RS232 and Ethernet communication card

Performance and Features

Cabinet


Size(L*D*H)

Maximum input channel

Maximum output channel

3U(43x43x13cm)

       16

      16

5U(43x43x22cm)

       32

      32

11U(43x43x49cm)

       72

      72

20U(43x43x90cm)

     144

    144



Video Input Signal


CVBS input

Impedance

75Ω

Level

1Vp-p

TV System

Adaptive NTSC, PAL

Interface type

BNC

YPbPr input

Impedance

75Ω

Level

0.7V

Resolution

480i,576i,480P,576P,720P,1080i50/60, 1080P25/30/50/60

Sync Type

SOG

Interface type

DB15FM,(1-Cr,2-Y,3-Cb)

VGA input

Impedance

75Ω

Level

0.7V

Resolution

Common resolution of VESA, 640x480@60Hz~1920x1200@60Hz

Sync Type

Independent horizontal and vertical signal

Interface type

DB15FM

HDMI/DVI input

Clock frequency

25Mhz-225Mhz

Standards

DVI1.0 HDMI1.4 HDCP1.2

Interface type

Type A 19pin HDMI or DVI-D

SDI input

Bit Rate

143Mbps~2.97Gbps

Standards

SMPTE 259M、292M、344M、424M, compatible with SMPTE291 in audio

Interface type

BNC

HDBaseT iuput

Transmission distance

 ≤100m (cat5,cat6)

Max resolution

 1920x1080@60

HDCP standard

 HDCP1.2

Optical fiber input

Optical interface

 LC

Wave length

850nm,1310nm,1550nm are optional

Transmission mode

Multi-mode and single-mode are optional

Rate

3Gbps

Transmission distance

2Km,10Km,20Km,40Km,80Km are optional

Analog Audio Input


Interface

3.5mm stereo jack

Level

0.5-2.0Vp-p

Impedance

600Ω

sampling frequency

48Khz

Video Output Signal


YPbPr output

Impedance

75Ω

Level

0.7V

Resolution

576i,720P50/60,1080i50/60, 1080P25/30/50/60

Sync Type

SOG

Interface type

DB15FM,(1-Cr,2-Y,3-Cb)

VGA output

Impedance

75Ω

Level

0.7V

Resolution

1024x768,1280x1024,1440x900,1360x768,1680x1050,
1600x1200,1280x720,1920x1080,1920x1200

Sync Type

Independent horizontal and vertical signal

Interface type

DB15FM

HDMI/DVI output

Clock frequency

25Mhz-225Mhz

Standards

DVI1.0 HDMI1.4 HDCP1.2

Resolution

1024x768,1280x1024,1440x900,1360x768,1680x1050,
1600x1200,1280x720,1920x1080,1920x1200,4k, 576i,720P50/60,1080i50/60, 1080P25/30/50/60

Interface type

Type A 19pin HDMI or DVI-D

SDI output

Bit Rate

143Mbps~2.97Gbps

Standards

SMPTE 259M、292M、344M、424M , compatible with SMPTE291 in audio

Interface type

BNC

HDBaseT output

Transmission distance

 ≤100m (cat5,cat6)

Max resolution

 1920x1080@60

HDCP standard

 HDCP1.2

Optical fiber output

Optical interface

 LC

Wave length

850nm,1310nm,1550nm are optional

Transmission mode

Multi-mode and single-mode are optional

Rate

3Gbps

Transmission distance

2Km,10Km,20Km,40Km,80Km are optional

Analog Audio Output


Interface

3.5mm stereo jack

Level

0.5-2.0Vp-p

Impedance

600Ω

Power Consumption


Hybrid input card

      8W/card

SDI input card

     10W/card

HDBaseT input card

     30W/card

Optical input card

     20W/card

Hybrid output card

   10W/card

HDBaseT output card

     20W/card

Optical fiber output card

20W/card

3U without input or output card

20W

5U without input or output card

      20W

10U without input or output card

      40W

20U without input or output card

      80W

Operating Conditions


Input Voltage

AC 90V~260V 50/60Hz

Operating temperature

0~50℃

Storage temperature

0~65℃

Operating humidity

<90%RH
