  • 16 Channels HD video Multi-viewer
16 Channels HD video Multi-viewer

16 Channels HD video Multi-viewer

Modular design
16X Channnels
HDMI 4K2K solution

Product Description:

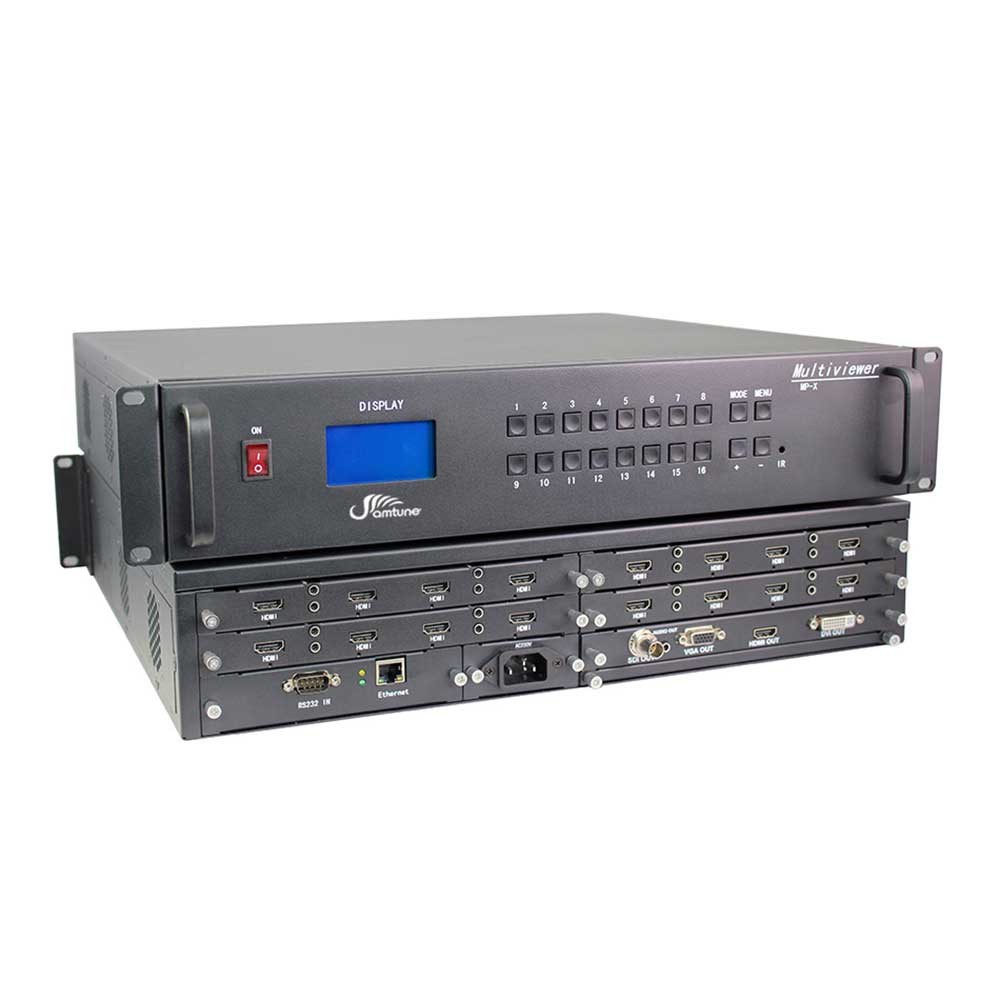

 AM-PXH16 HD video16 Channels Multi-Viewer


Brief introduction
Discover the AM-PXH16 high-definition multi-video multi-viewer, a professional graphics processing device designed to synthesize multiple channels of video signals into a single high-definition output. With customizable window size, display position, and video scaling options, this versatile device empowers users to tailor their viewing experience to their exact specifications. Achieve uniform output of HD videos effortlessly with the AM-PXH16 multi-viewer.


Feature:

  • Flexible Card Structure: Easily expandable with one card featuring 4 inputs. Fits 2 inputs in a 1U chassis and 4 cards in a 2U chassis for up to 16 inputs.

  • Versatile Input Support: Compatible with various input signal sources including CVBS, HDMI (DVI), VGA (YPbPr), and SDI, allowing for mixed input configurations.

  • High-Quality Image Processing: Internal 10-bit processing ensures true color reproduction for exceptional visual fidelity.

  • Extensive Input Compatibility: Supports a wide range of resolutions and standards including VGA (YPbPr) up to UXGA@75Hz/WUXGA@60Hz, HDMI (DVI) with HDCP1.2 compliance, and SDI supporting 3G/HD/SD-SDI at rates from 143Mbps to 2.97Gbps.

  • User-Friendly Controls: Enables quick operation through local buttons or a convenient remote control, with additional support for computer software control via RS232 and Ethernet interfaces.

  • Enhanced Security: Includes power-off site protection for added reliability in various environments.

  • Customizable Display: Offers support for custom screen sizes, layouts, and scene saving, allowing users to tailor their viewing experience to their preferences.

  • 4K Output Capability: Supports 4K (3840x2160/30) output, providing high-resolution display options (note: 2K output is not compatible)


Parameters


Model series

AM-PXH16

Input signal(optional)

HDMI/SDI/DVI/VGA/AV/YPbPr

Input resolution

4k, 1080p,1024x768,commonly used resolutions

Output signal format

HDMI/SDI/DVI/VGA/AV/YPbPr

Output resolution

Up to 1920*1200/60HZ, 4k

System control software

Special control software

Power Supply

Redundant power supply 110-220VAC, 50/60Hz

Working temperature

-20°C——60°C

Working Humidity

5-95%

Case specification

2U/4Ustandard rack mount chassis

Serial Control Interface

RS-232,9-pin female, Type-D

Working time

365*7*24hrs



CVBS input

Impedance

75Ω

Level

1Vp-p

TV System

Adaptive NTSC, PAL

Interface type

BNC

YPbPr input

Impedance

75Ω

Level

0.7V

Resolution

480i,576i,480P,576P,720P,1080i50/60, 1080P25/30/50/60

Sync Type

SOG

Interface type

DB15FM,(1-Cr,2-Y,3-Cb)

VGA input

Impedance

75Ω

Level

0.7V

Resolution

Common resolution of VESA, 640x480@60Hz~1920x1200@60Hz

Sync Type

Independent horizontal and vertical signal

Interface type

DB15FM

HDMI/DVI input

Clock frequency

25Mhz-225Mhz

Standards

DVI1.0 HDMI1.4 HDCP1.2

Interface type

Type A 19pin HDMI or DVI-D

SDI input

Bit Rate

143Mbps~2.97Gbps

Standards

SMPTE 259M、292M、344M、424M, compatible with SMPTE291 in audio

Interface type

BNC
