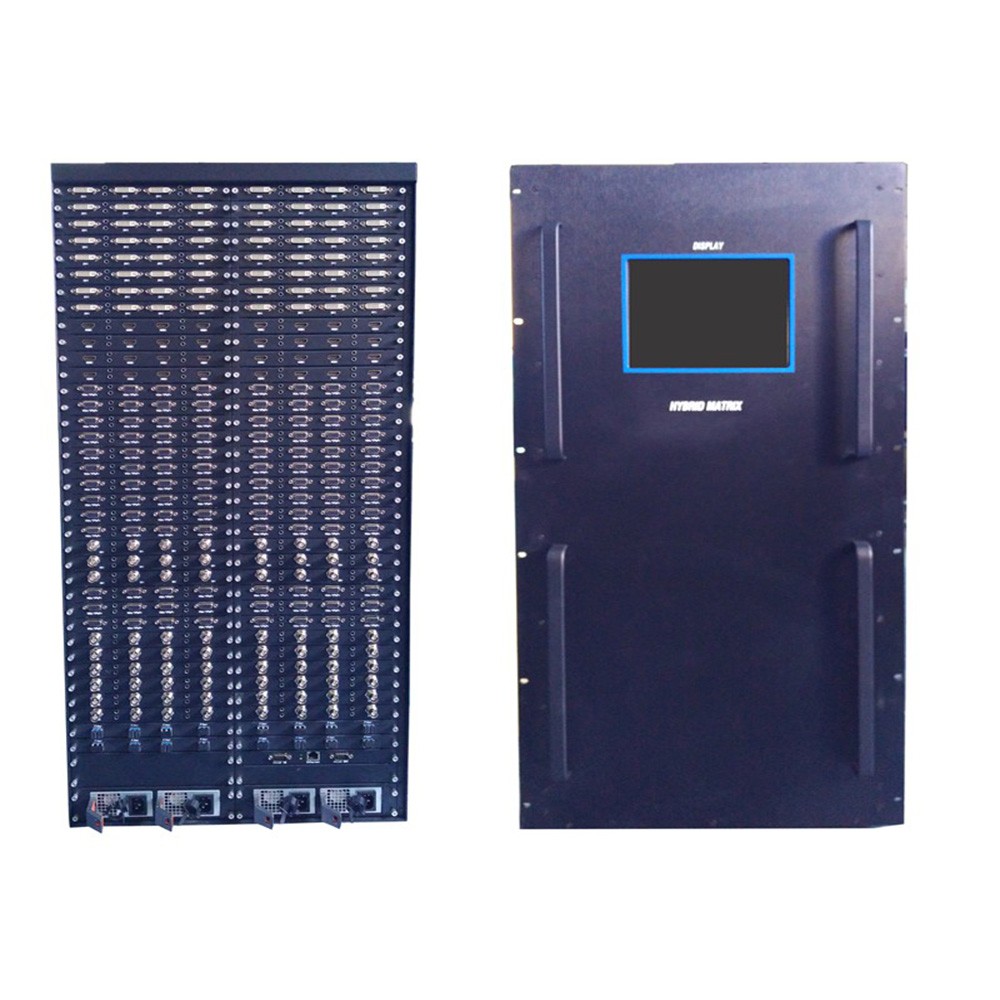

  • 144x128 HDMI DVI SDI HDBaseT Fiber Hybrid Seamless Matrix switch
144x128 HDMI DVI SDI HDBaseT Fiber Hybrid Seamless Matrix switch

144x128 HDMI DVI SDI HDBaseT Fiber Hybrid Seamless Matrix switch

Carrier-class design
7*24*365 steady running
Redundancy power supply

Product Description:

AM-SM144128 is a cutting-edge seamless hybrid switching matrix designed to address the limitations commonly found in traditional video matrix systems. It offers a range of features and capabilities to ensure smooth and uninterrupted switching between various input and output signals. Here's a breakdown of its key features:



Feature:


Full-digital switching: Ensures seamless switching between input signals without any flickering, black screens, delays, or signal interruptions.


Versatile signal compatibility: Supports a wide range of input and output signals including CVBS, VGA, YPbPr, HDMI, DVI, SDI, HDbaseT, and optical fiber, making it suitable for diverse multimedia setups.


Real-time seamless switching: Delivers instantaneous and smooth transitions between different input sources without any noticeable interruption to the viewing experience.


Adaptive input resolution: Automatically adjusts input resolution to match the requirements of the output device, ensuring optimal image quality.


HDMI compatibility: Features HDMI interface compatible with DVI1.0 and HDMI1.4 standards, supporting HDCP1.2, Blu-ray players, and DeepColor technology for enhanced color depth.


Digital processing for analog inputs: Utilizes advanced digital processing for analog inputs (CVBS, VGA, YPbPr), achieving high-quality image reproduction with resolutions up to 1920x1200@60Hz.


Advanced video processing: Includes features such as 3D adaptive comb filtering and de-interlacing for CVBS input, ensuring superior video quality and compatibility with PAL and NTSC standards.


SDI input support: Supports various SDI standards including 3G/HD/SD-SDI, ensuring compatibility with serial video standards such as SMPTE 259M, 292M, 344M, and 424M.


Audio support: Provides support for input and output of analog audio signals, as well as SDI audio embedding and de-embedding (SMPTE291).


User-friendly interface: Features a 4.3-inch or 9.7-inch touch-screen interface for intuitive operation and quick access to functions.


Scene store and recall: Allows users to store and recall customized scenes for efficient operation in different scenarios.


Control options: Supports control via RS232 and Ethernet, with an open control protocol for integration with third-party control systems.


Power protection: Includes site protection functionality to safeguard against power interruptions and ensure system reliability.


Redundant power supply (optional): Offers the option for 1+1 redundant power supply for added reliability in mission-critical applications.


Standard plug-in industrial cabinet: Utilizes a standard plug-in industrial cabinet design, with 1 card supporting 4 channels.



Components of Equipment
Cabinet


Size(L*D*H)

Maximum input channel

Maximum output channel

3U(43x43x13cm)

       16

      16

5U(43x43x22cm)

       32

      32

11U(43x43x49cm)

       72

      72

20U(43x43x90cm)

144

144



Video Input Signal


CVBS input

Impedance

75Ω

Level

1Vp-p

TV System

Adaptive NTSC, PAL

Interface type

BNC

YPbPr input

Impedance

75Ω

Level

0.7V

Resolution

480i,576i,480P,576P,720P,1080i50/60, 1080P25/30/50/60

Sync Type

SOG

Interface type

DB15FM,(1-Cr,2-Y,3-Cb)

VGA input

Impedance

75Ω

Level

0.7V

Resolution

Common resolution of VESA, 640x480@60Hz~1920x1200@60Hz

Sync Type

Independent horizontal and vertical signal

Interface type

DB15FM

HDMI/DVI input

Clock frequency

25Mhz-225Mhz

Standards

DVI1.0 HDMI1.4 HDCP1.2

Interface type

Type A 19pin HDMI or DVI-D

SDI input

Bit Rate

143Mbps~2.97Gbps

Standards

SMPTE 259M、292M、344M、424M, compatible with SMPTE291 in audio

Interface type

BNC

HDBaseT iuput

Transmission distance

 ≤100m (cat5,cat6)

Max resolution

 1920x1080@60

HDCP standard

 HDCP1.2

Optical fiber input

Optical interface

 LC

Wave length

850nm,1310nm,1550nm are optional

Transmission mode

Multi-mode and single-mode are optional

Rate

3Gbps

Transmission distance

2Km,10Km,20Km,40Km,80Km are optional

Analog Audio Input


Interface

3.5mm stereo jack

Level

0.5-2.0Vp-p

Impedance

600Ω

sampling frequency

48Khz

Video Output Signal


YPbPr output

Impedance

75Ω

Level

0.7V

Resolution

576i,720P50/60,1080i50/60, 1080P25/30/50/60

Sync Type

SOG

Interface type

DB15FM,(1-Cr,2-Y,3-Cb)

VGA output

Impedance

75Ω

Level

0.7V

Resolution

1024x768,1280x1024,1440x900,1360x768,1680x1050,
1600x1200,1280x720,1920x1080,1920x1200

Sync Type

Independent horizontal and vertical signal

Interface type

DB15FM

HDMI/DVI output

Clock frequency

25Mhz-225Mhz

Standards

DVI1.0 HDMI1.4 HDCP1.2

Resolution

1024x768,1280x1024,1440x900,1360x768,1680x1050,
1600x1200,1280x720,1920x1080,1920x1200,4k, 576i,720P50/60,1080i50/60, 1080P25/30/50/60

Interface type

Type A 19pin HDMI or DVI-D

SDI output

Bit Rate

143Mbps~2.97Gbps

Standards

SMPTE 259M、292M、344M、424M , compatible with SMPTE291 in audio

Interface type

BNC

HDBaseT output

Transmission distance

 ≤100m (cat5,cat6)

Max resolution

 1920x1080@60

HDCP standard

 HDCP1.2

Optical fiber output

Optical interface

 LC

Wave length

850nm,1310nm,1550nm are optional

Transmission mode

Multi-mode and single-mode are optional

Rate

3Gbps

Transmission distance

2Km,10Km,20Km,40Km,80Km are optional

Analog Audio Output


Interface

3.5mm stereo jack

Level

0.5-2.0Vp-p

Impedance

600Ω

 Power Consumption


Hybrid input card

      8W/card

SDI input card

     10W/card

HDBaseT input card

     30W/card

Optical input card

     20W/card

Hybrid output card

    10W/card

HDBaseT output card

     20W/card

Optical fiber output card

     20W/card

3U without input or output card

     20W

5U without input or output card

      20W

10U without input or output card

      40W

20U without input or output card

      80W

Operating Conditions


Input Voltage

AC 90V~260V 50/60Hz

Operating temperature

0~50℃

Storage temperature

0~65℃

Operating humidity

<90%RH
