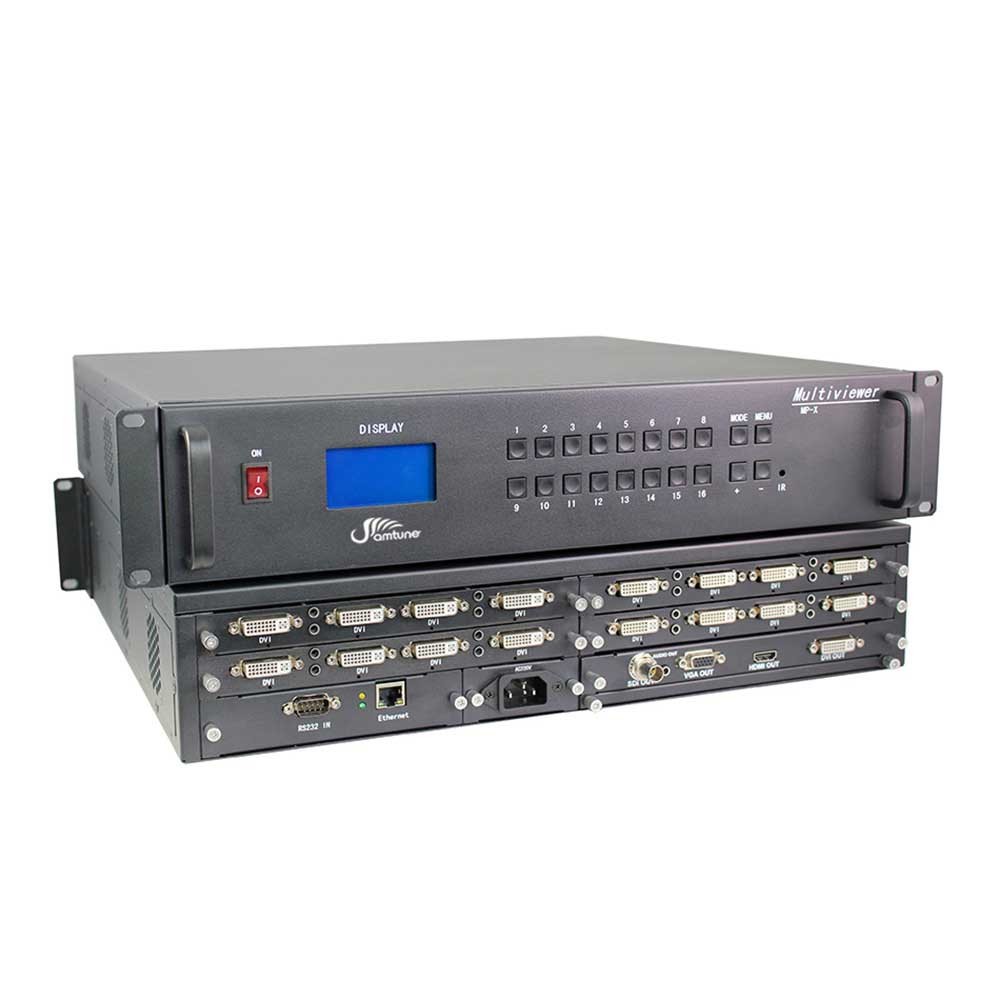

AM-PXD16 DVI 16 Channels Multi-Viewer

AM-PXD16 DVI 16 Channels Multi-Viewer

Brief introduction

AM-PXD16 high-definition multi-video Multi-viewer is a professional graphics processing device, which can synthesize multiple channels of video signals into one high-definition signal output, and adjust the window size, display position and video scale according to user requirements. Adjust output of the HD-videos in a uniform format.

Feature:
◆ Card structure, one card with 4 inputs, 1U chassis can be plugged in 2 inputs, 2U chassis can insert 4 cards 16 inputs;
◆ The input signal source supports CVBS, HDMI (DVI), VGA (YPbPR), SDI, and can be mixed input;
◆ The internal image processing is 10-bit processing, and the color reproduction is true;
◆ VGA (YPbPr) input ADC maximum sampling frequency 205Mhz, support to UXGA@75Hz/WUXGA60Hz, support Composite-Sync and Sync-on-Green (SOG), the highest resolution to 1920x1200@60Hz;
◆ HDMI (DVI) input is compatible with HDMI1.4, supports HDCP1.2, Deep color: 12-bit YCC4:4:4, XVYCC supports IEC61966-2-4 color standard;
◆ SDI input supports 3G/HD/SD-SDI at a rate of 143Mbps to 2.97Gbps, compatible with SMPTE 259M, 292M, 424M, ITU R BT.601, ITU R BT.1120 serial video standards;
◆ Support the quick operation of the local button and the red remote control;
◆ With RS232 and Ethernet interface, support computer software control;
◆ Support power-off site protection;
◆ Support custom screen size, layout, and save scenes.
◆ Support 4K (3840x2160/30) output (output board and 2K output are not compatible).
