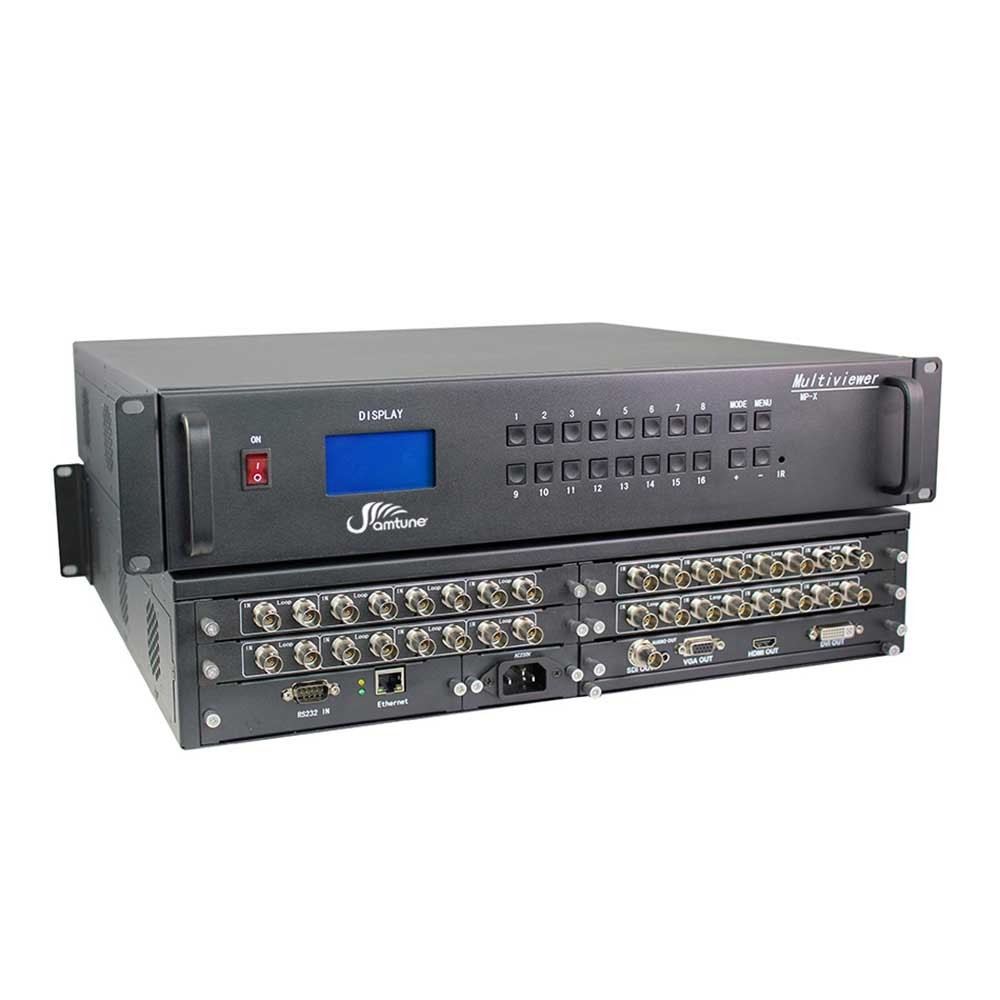

AM-PXS16 SDI 16 Channels Multi-Viewer

AM-PXS16 SDI 16 Channels Multi-Viewer

Brief introduction

Explore the AM-PXS16 high-definition multi-video multi-viewer, a professional graphics processing device engineered to seamlessly combine multiple video signals into a single high-definition output. With customizable window sizing, display positioning, and video scaling capabilities, users can tailor their viewing experience to precise specifications. Experience uniform HD video output with the AM-PXS16 multi-viewer.

Feature:

• Flexible Card Structure: Each card accommodates 4 inputs, with 1U chassis supporting 2 inputs and 2U chassis accommodating 16 inputs.

• Versatile Input Support: Compatible with CVBS, HDMI (DVI), VGA (YPbPr), and SDI inputs, allowing for mixed input configurations.

• High-Quality Image Processing: Internal 10-bit processing ensures true color reproduction for exceptional visual fidelity.

• Precise Input Specifications: VGA (YPbPr) input supports resolutions up to UXGA@75Hz/WUXGA@60Hz and offers Composite-Sync and Sync-on-Green (SOG) support.

• HDMI (DVI) Compatibility: Supports HDMI1.4, HDCP1.2, and Deep Color with 12-bit YCC4:4:4, ensuring compatibility with various standards.

• Extensive SDI Compatibility: Supports 3G/HD/SD-SDI at rates from 143Mbps to 2.97Gbps, compatible with SMPTE and ITU R BT serial video standards.

• User-Friendly Operation: Quick operation via local buttons and a red remote control, with additional support for software control via RS232 and Ethernet interfaces.

• Enhanced Security: Features power-off site protection for added reliability in diverse environments.

• Customizable Display: Supports custom screen sizes, layouts, and scene saving for personalized viewing experiences.

• 4K Output Capability: Offers support for 4K (3840x2160/30) output (note: output board and 2K output are not compatible).

Parameters
