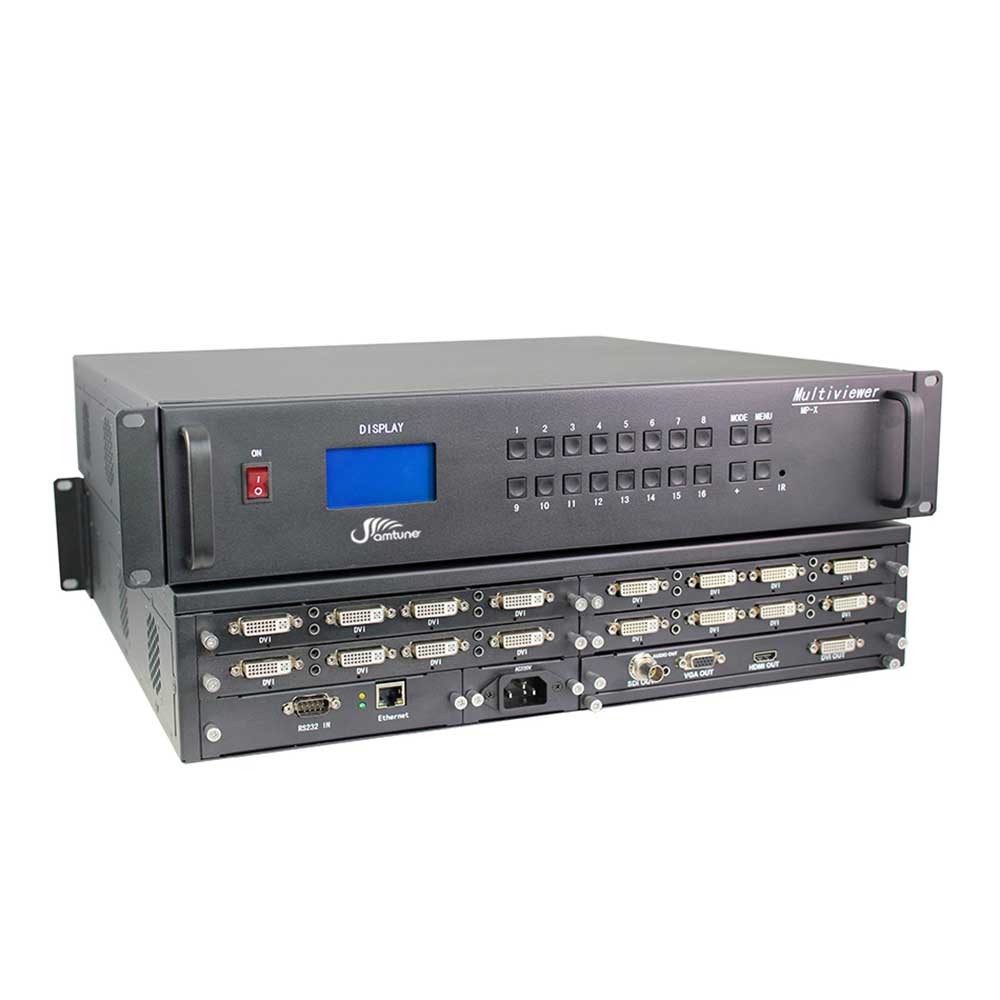

AM-PXD16 DVI 16 Channels Multi-Viewer

Brief introduction


AM-PXD16 high-definition multi-video Multi-viewer is a professional graphics processing device, which can synthesize multiple channels of video signals into one high-definition signal output, and adjust the window size, display position and video scale according to user requirements. Adjust output of the HD-videos in a uniform format.


Feature:
◆ Card structure, one card with 4 inputs, 1U chassis can be plugged in 2 inputs, 2U chassis can insert 4 cards 16 inputs;
◆ The input signal source supports CVBS, HDMI (DVI), VGA (YPbPR), SDI, and can be mixed input;
◆ The internal image processing is 10-bit processing, and the color reproduction is true;
◆ VGA (YPbPr) input ADC maximum sampling frequency 205Mhz, support to UXGA@75Hz/WUXGA60Hz, support Composite-Sync and Sync-on-Green (SOG), the highest resolution to 1920x1200@60Hz;
◆ HDMI (DVI) input is compatible with HDMI1.4, supports HDCP1.2, Deep color: 12-bit YCC4:4:4, XVYCC supports IEC61966-2-4 color standard;
◆ SDI input supports 3G/HD/SD-SDI at a rate of 143Mbps to 2.97Gbps, compatible with SMPTE 259M, 292M, 424M, ITU R BT.601, ITU R BT.1120 serial video standards;
◆ Support the quick operation of the local button and the red remote control;
◆ With RS232 and Ethernet interface, support computer software control;
◆ Support power-off site protection;
◆ Support custom screen size, layout, and save scenes.
◆ Support 4K (3840x2160/30) output (output board and 2K output are not compatible).


Parameters


Model series

AM-PXD16

Input signal(optional)

HDMI/SDI/DVI/VGA/AV/YPbPr

Input resolution

4k, 1080p,1024x768,commonly used resolutions

Output signal format

HDMI/SDI/DVI/VGA/AV/YPbPr

Output resolution

Up to 1920*1200/60HZ, 4k

System control software

Special control software

Power Supply

Redundant power supply 110-220VAC, 50/60Hz

Working temperature

-20°C——60°C

Working Humidity

5-95%

Case specification

2U/4Ustandard rack mount chassis

Serial Control Interface

RS-232,9-pin female, Type-D

Working time

365*7*24hrs



CVBS input

Impedance

75Ω

Level

1Vp-p

TV System

Adaptive NTSC, PAL

Interface type

BNC

YPbPr input

Impedance

75Ω

Level

0.7V

Resolution

480i,576i,480P,576P,720P,1080i50/60, 1080P25/30/50/60

Sync Type

SOG

Interface type

DB15FM,(1-Cr,2-Y,3-Cb)

VGA input

Impedance

75Ω

Level

0.7V

Resolution

Common resolution of VESA, 640x480@60Hz~1920x1200@60Hz

Sync Type

Independent horizontal and vertical signal

Interface type

DB15FM

HDMI/DVI input

Clock frequency

25Mhz-225Mhz

Standards

DVI1.0 HDMI1.4 HDCP1.2

Interface type

Type A 19pin HDMI or DVI-D

SDI input

Bit Rate

143Mbps~2.97Gbps

Standards

SMPTE 259M、292M、344M、424M, compatible with SMPTE291 in audio

Interface type

BNC
