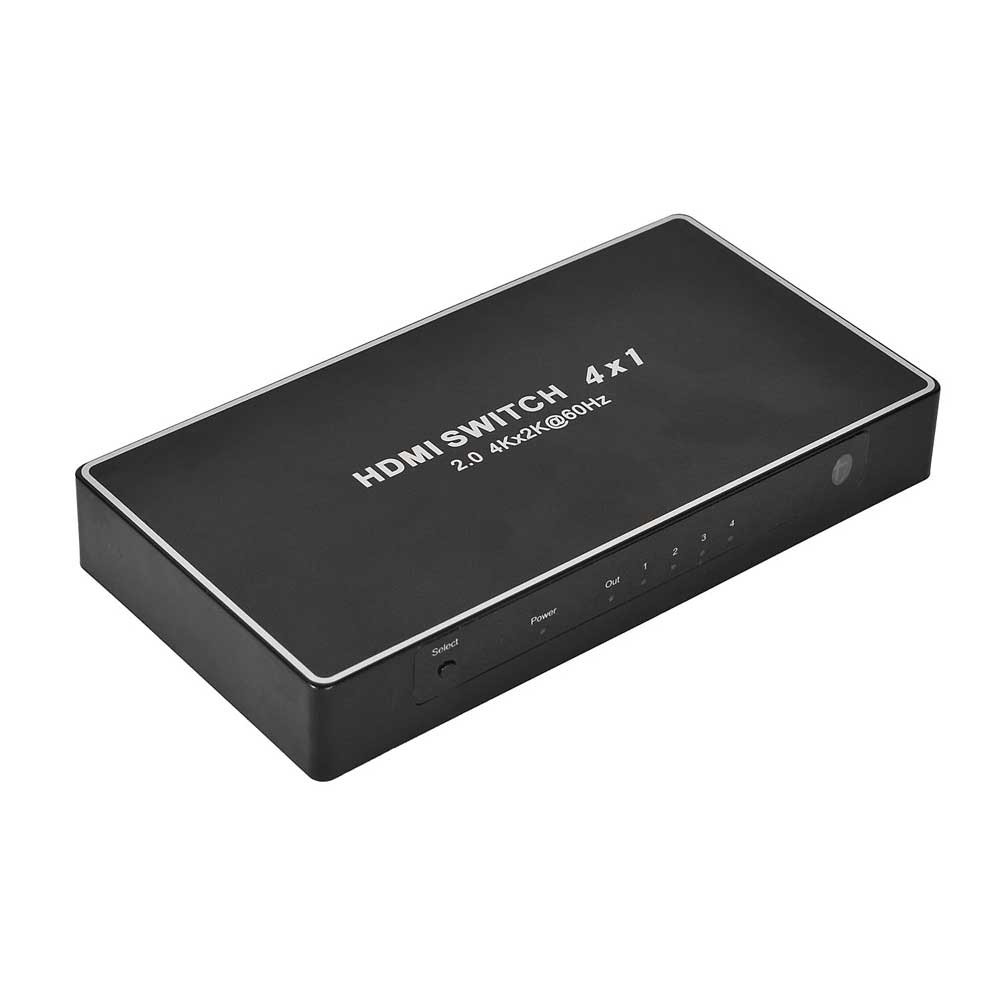

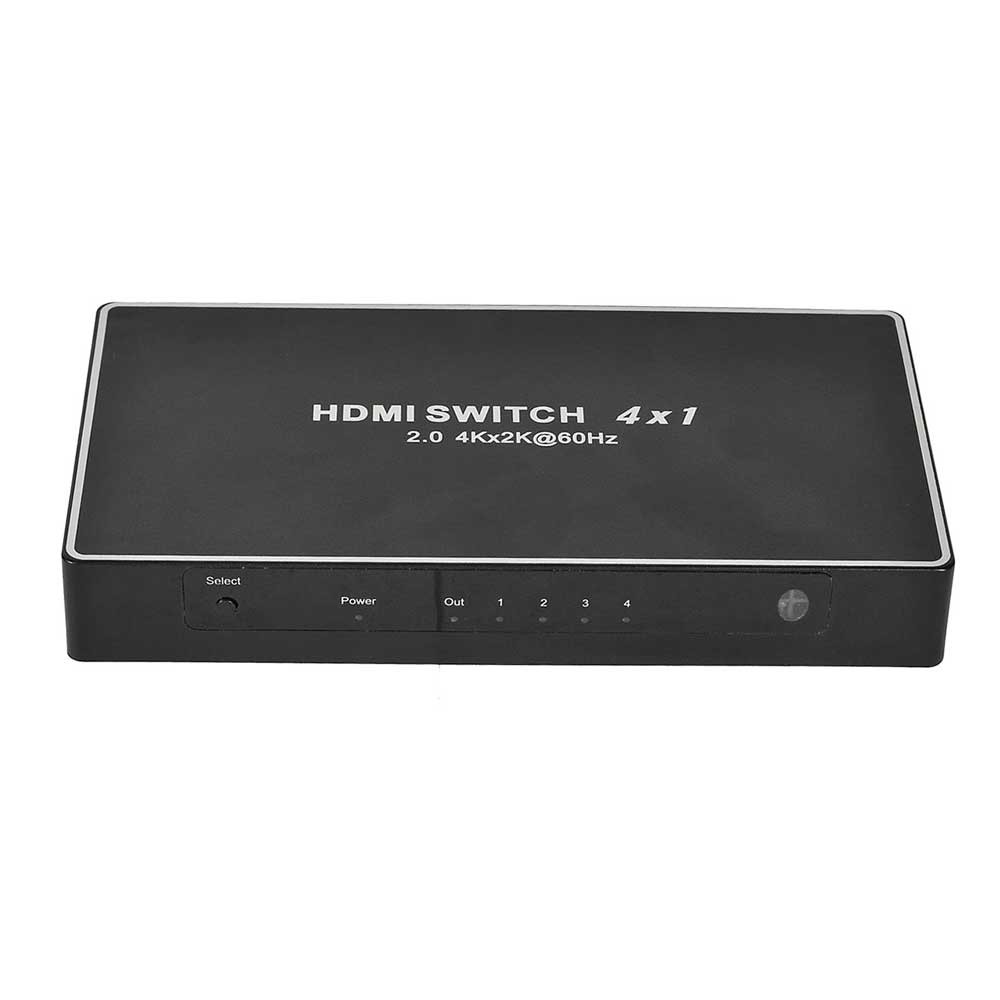

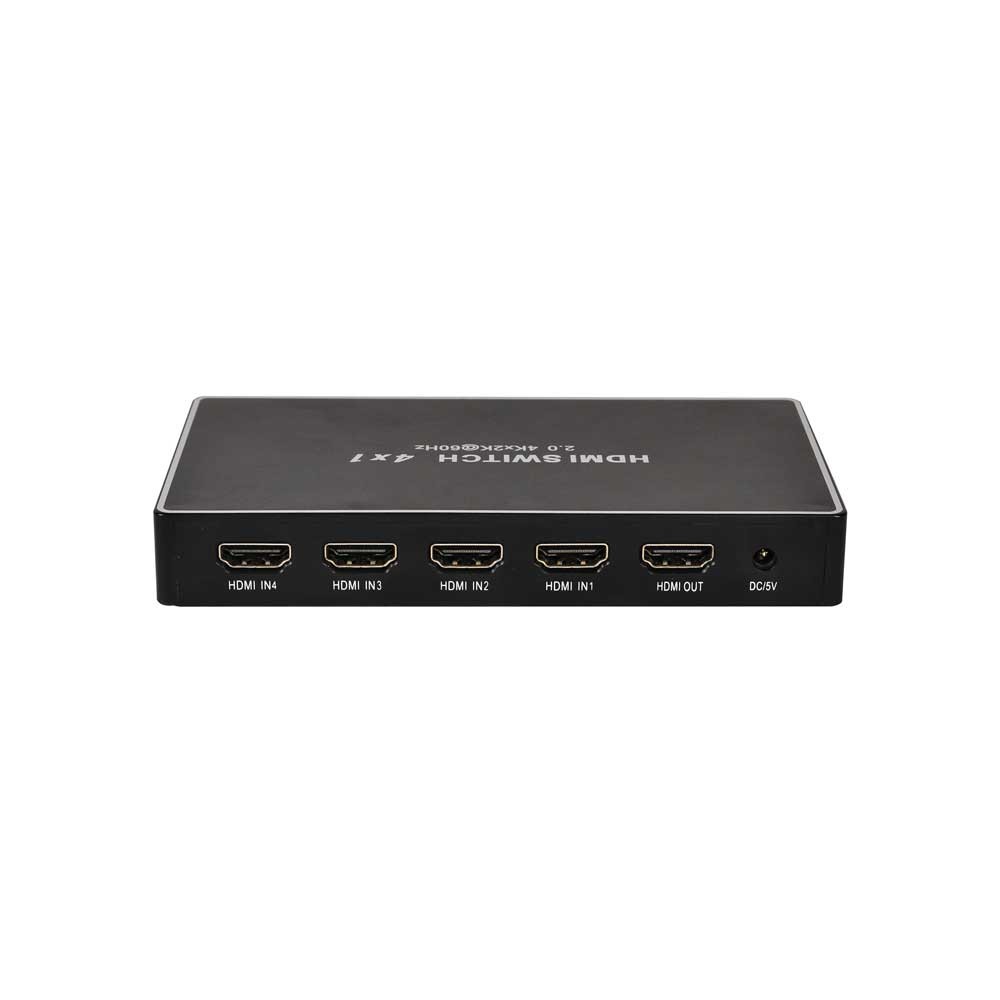

HDMI 4k switch 4 inputs 1outputHDMI 4k switch 4 inputs 1outputHDMI 4k switch 4 inputs 1output

HDMI 4k switch 4 inputs 1output

HDMI 4K Ultra-HD
Plug and play operation
AWG 26

PDF
Product Description:

4x1 HDMI Switch:



The 4x1 HDMI switch allows 4 HDMI ports to be switched to a single display terminal via remote control or buttons on unit. The switcher can be placed at the end of a long HDMI cable to regenerate the HDMI signal.The HDMI switcher can support all hd formats including 720p, 1080i, 1080p, 4K/30Hz,4K/60Hz multichannel audio.


FEATURES

  • Support HDMI 2.0a

  • Support 3D

  • Support highest video resolution 4K/60Hz

  • Support 6Gbps data rate for tmds clock up to 600MHz

  • Support 24/30/36 bit deep color

  • Support standard AWG26 cable, input up to 8 metres ,output up to 8 metres (4K/30Hz or lower)

  • Support standard HDMI 2.0 cable, input up to 3 metres ,output up to 5 metres(4K/60Hz)

  • Support single and high definition display for multiple sources, such as DVD Players  and Satellite Receivers, HD players, PS4, Set top Boxes.

  • Need DC5V/1A power supply.



SPECIFICATIONS:

HDMI version   ……………………………………………………………………..… HDMI 2.0a

HDMI resolution ………………………....4K/60Hz

Support video format ................................................................................................3D

Support video color format ………………………….............………  24/30/36 bit deep color DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max bandwidth…………………………………………………………………………….600MHz

Max baud rate……………….…….………………….…………………………………..6Gbps

Input cable distance..…... …………………………..……≤8m AWG26 HDMI standard cable(4K/30HZ); ≤3m 2.0 HDMI standard cable(4K/60HZ);

Output cable distance……………………………….…...≤8m AWG26 HDMI standard cable(4K/30HZ); ≤5m 2.0 HDMI standard cable(4K/60HZ);

Max working current……………………………………………………………………….....350mA

Power adapter format..Input: …………….....AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range……..…………….………………………………… (-10 to +55℃)

Dimension (L x W x H) ……………………………….………………………144x75x21 (mm)

Weight…..………………………………………………………..…….………………………110g
