Product Description:

1. Product Overview



1.1 Product name and model

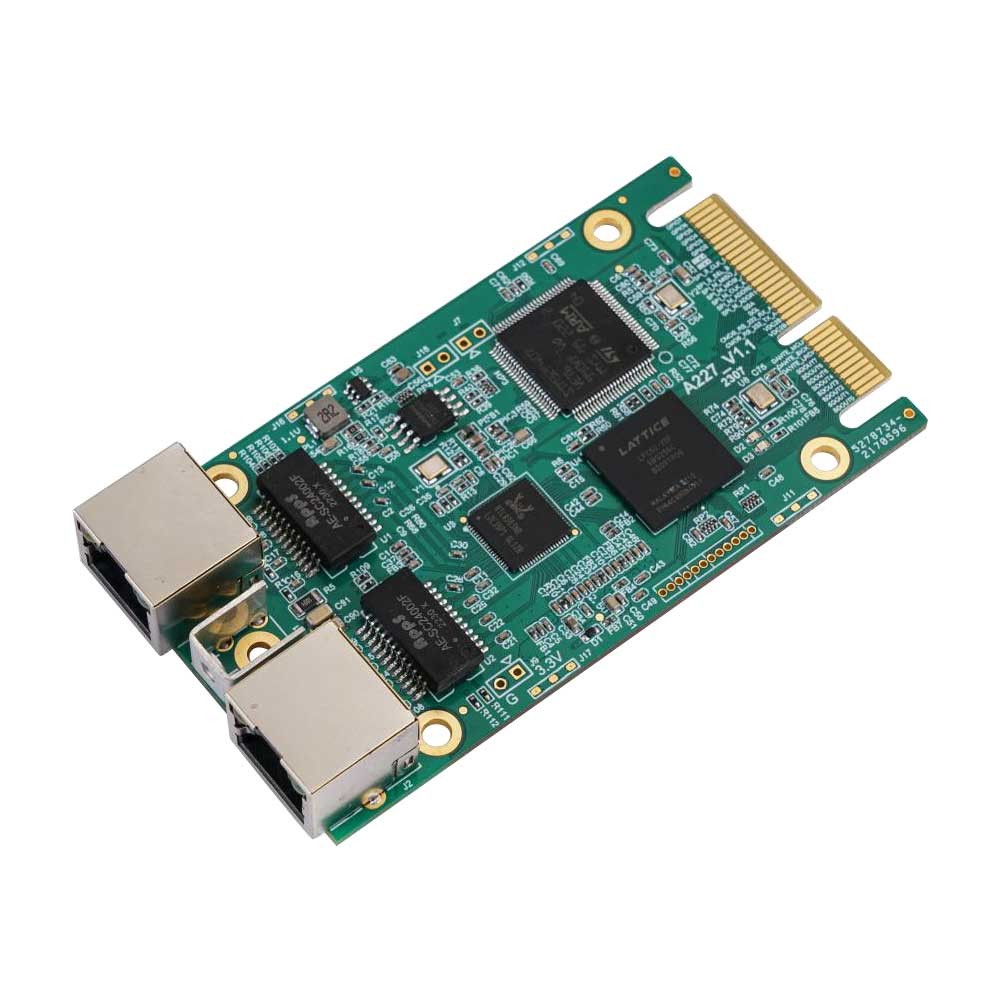

Name: Aes67 audio over ip module

Model: AM-A227



1.2 Features:



l Dante/AES67 Protocol Support: Seamlessly integrate with audio systems using Dante/AES67 protocol, ensuring compatibility and versatility.

l Mix, Volume, and Delay Adjustment: Easily adjust mixing, volume levels, and delay settings for precise audio control and synchronization.

l Built-in Gigabit Network Switching Chip: Features an onboard Gigabit network switching chip, enabling efficient data transfer and connectivity. Additionally, it can be powered by its own PoE switch for added convenience.

l Expandable Connectivity: Connect up to 32 devices each for input and output, offering expansive options for audio integration and distribution.

l Gold Finger Connection: Utilizes gold finger connection for seamless plug-and-play functionality, ensuring quick and reliable setup without the need for complex configurations.




2. Main Technical specifications:





Sampling Rate

48kHz, 96kHz

Audio input/output channels

Support 32x32 matrix function

Digital audio Format

TDM, I2S

Audio transmission format

Audio over IP, AES67

Sampling bit

16/24/32 bit

Clock

Onboard WCLK or External LRCK





3. Electrical Characteristics



3.1 Module power supply

The power supply voltage of AM-A227 is 3.3V, and the voltages VDC2B+, VDC2B-, VDC2A+, and VDC2A- are output voltage as input to the user's power strip.

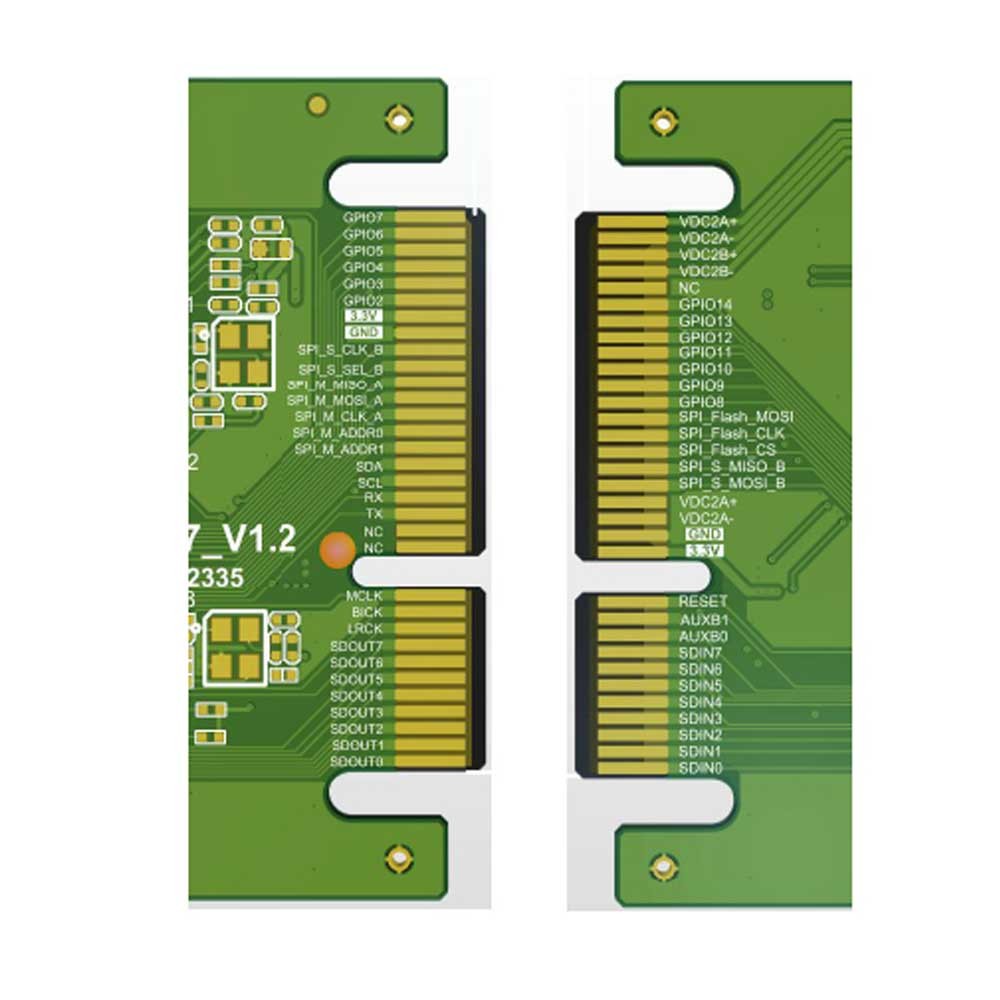

3.2  Pin distribution




3.3 Interface description



Type

Name

Describe







Powers

3.3V

3.3V Power supply(input)

GND

Ground

VDC2B+

For external PoE circuit (output)

VDC2B-

VDC2A+

For external PoE circuit (output)

VDC2A-

I2S

DANTE_MCLK

I2S master clock (output)

DANTE_BLCK

I2S bit clock (output)

DANTE_LRCK

I2S word clock (output)

MCLK[0:7]

I2S data output

SDIN[0:7]

I2S data input

I2C

SDA

I2C data line

SCL

12C clock line

SPI master

SPLM_CLK_A

SPI clock pin

SPL_M_MOSI_A

Transfer data from slave device to master device

SP_M_MISO_A

Master device transmits data to slave device

SPL_M_ADDR1

This pin is left floating and its function needs to be defined

SPLM_ADDRO

Chip select signal

SPl from

SPI_S_CLK_B

SPI clock pin

SPI_S_SEL_B

SPl chip select

SPIL_S_MISO_B

Master device transmits data to slave device

SPI_S_MOSI_B

Master device transmits data to slave device

Uart

COMS_RS_232_RX_A

UART data reception

COMS_RS_232_TX_A

UART data transmission

Audio

AUXBU

reserved


AUXB1

reserved

Reserved

GPIO[2:19]

Reserve GPIO port

reset

DANTE_HRESET

reset input



4. Software support



The control software can use Amtune’s control software AudioController (for software usage, please refer to Software User Manual), and this module is also compatible with the software Dante Controller. The module supports firmware updates,If you need to update the firmware, please contact distributor.



5.  Structural dimensions

AM-A227 reserves 2 positioning holes with a diameter of 3.5mm, and 4 shielding cover brackets are reserved on the front and back of the module.

Users can choose according to their needs.
