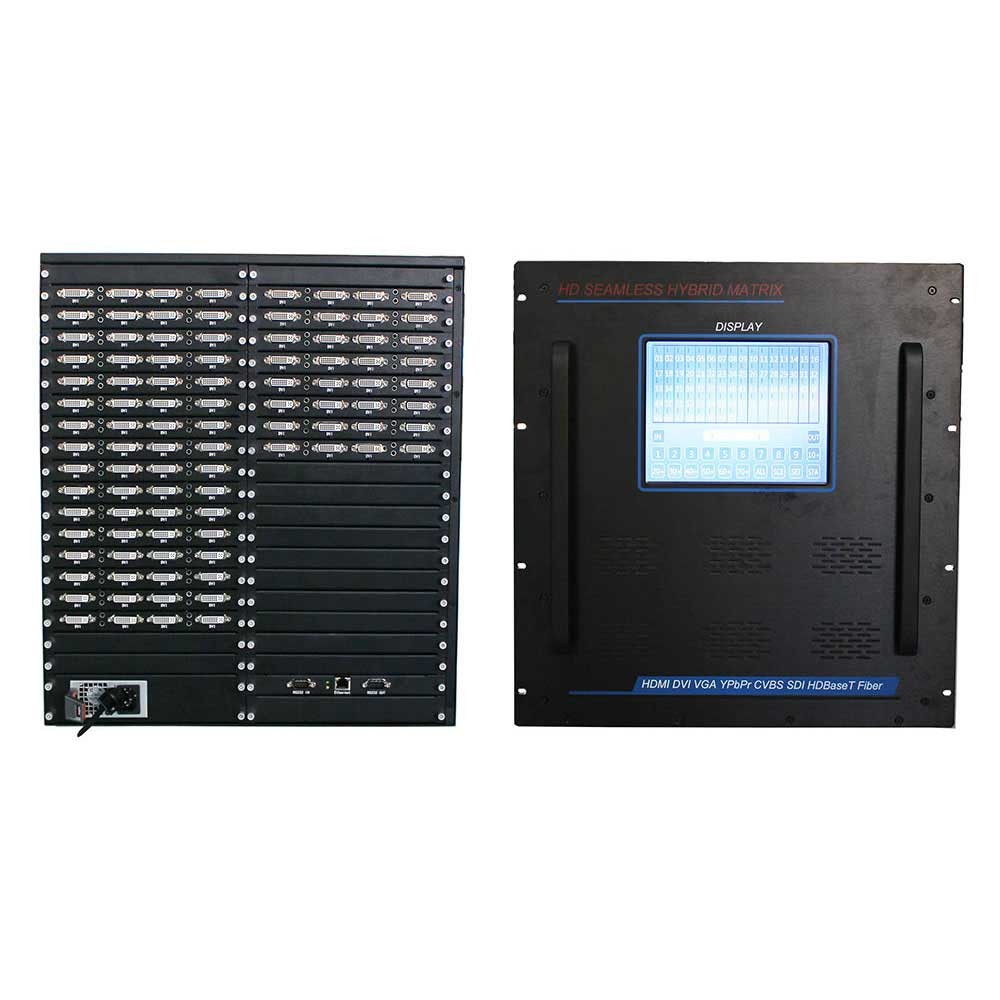

DVI Seamless Matrix 64x32

Hybrid Seamless Matrix
HDMI DVI SDI VGA Fiber
4 I/O in one card

Product Description:

HD-Video Seamless Hybrid Matrix

AM-DM6432

Brief introduction
Traditional video matrix will generate flashing, black, jitter, delay and signal interruption and other shortcomings in switching process. the new seamless hybrid switching matrix, has completely overcome the shortcomings of traditional matrix, with no flicker, no black, no delay and no signal interruption in switching process. And it can achieve the input and output of CVBS, VGA, YPbPr, HDMI, DVI, SDI, HDbaseT and optical fiber.

Feature:
◆ Full-digital switching;
◆ Available input and output for any signal;
◆ Real-time seamless switching;
◆ Adaptive input resolution, adjustable output resolution;
◆ HDMI interface, compatible with DVI1.0 and HDMI1.4, support HDCP1.2, support Blu-ray player and support DeepColor;
◆ Digital processing of analog input for CVBS, VGA and YPbPr, ADC sampling frequency up to 205Mhz, 24-bit internal image processing, true color reproduction, the highest resolution up to 1920x1200@60Hz;
◆CVBS input integrates advanced 3D adaptive comb filter and de-interlace processing, automatic identification for PAL, NTSC;
◆ SDI input, supports 3G/HD/SD-SDI, the rate of 143Mbps ~ 2.97Gbps, compatible with serial video standards, e.g. SMPTE 259M, 292M, 344M, 424M, ITU R BT.601, ITU R BT.1120;
◆ Support input and output of analog audio;
◆ Support SDI audio embedding and de-embedding (SMPTE291);
◆ 4.3 inch (32x32) /9.7 inch (72x72), touch-screen operation, beautiful and fast.
◆ Support scene store and recall.
◆ Support RS232 and Ethernet control, open control protocol, beneficial for third-party serial control;
◆ Support site protection when power off;
◆ Standard plug-in industrial cabinet, 1 card and 4 channels;
◆ 1+1 redundant power supply (optional).

Components of Equipment
Seamless hybrid matrix is consisted of main cabinet, input and output cards and communication card:

Input Cards:

◆ Hybrid input card (4 optional interfaces, CVBS, VGA, YPbPr, HDMI, DVI)
◆SDI input card
◆HDBaseT input card
◆Optical fiber input card

Output Cards:

◆ Hybrid output card (4 optional interfaces, CVBS, VGA, YPbPr, HDMI, DVI, SDI)
◆HDBaseT output card
◆Optical fiber output card

Communication card
◆RS232 and Ethernet communication card

Performance and Features

Cabinet

Size(LDH)	Maximum input channel	Maximum output channel
3U(43x43x13cm)	16	16
5U(43x43x22cm)	32	32
11U(43x43x49cm)	72	72
20U(43x43x90cm)	144	144

Video Input Signal

CVBS input
Impedance	75Ω
Level	1Vp-p
TV System	Adaptive NTSC, PAL
Interface type	BNC
YPbPr input
Impedance	75Ω
Level	0.7V
Resolution	480i,576i,480P,576P,720P,1080i50/60, 1080P25/30/50/60
Sync Type	SOG
Interface type	DB15FM,(1-Cr,2-Y,3-Cb)
VGA input
Impedance	75Ω
Level	0.7V
Resolution	Common resolution of VESA, 640x480@60Hz～1920x1200@60Hz
Sync Type	Independent horizontal and vertical signal
Interface type	DB15FM
HDMI/DVI input
Clock frequency	25Mhz-225Mhz
Standards	DVI1.0 HDMI1.4 HDCP1.2
Interface type	Type A 19pin HDMI or DVI-D
SDI input
Bit Rate	143Mbps～2.97Gbps
Standards	SMPTE 259M、292M、344M、424M, compatible with SMPTE291 in audio
Interface type	BNC
HDBaseT iuput
Transmission distance		≤100m (cat5,cat6)
Max resolution		1920x1080@60
HDCP standard		HDCP1.2
Optical fiber input
Optical interface		LC
Wave length		850nm,1310nm，1550nm are optional
Transmission mode		Multi-mode and single-mode are optional
Rate		3Gbps
Transmission distance		2Km,10Km,20Km,40Km,80Km are optional

Analog Audio Input

Interface	3.5mm stereo jack
Level	0.5-2.0Vp-p
Impedance	600Ω
sampling frequency	48Khz

Video Output Signal

YPbPr output
Impedance	75Ω
Level	0.7V
Resolution	576i,720P50/60,1080i50/60, 1080P25/30/50/60
Sync Type	SOG
Interface type	DB15FM,(1-Cr,2-Y,3-Cb)
VGA output
Impedance	75Ω
Level	0.7V
Resolution	1024x768,1280x1024,1440x900,1360x768,1680x1050, 1600x1200,1280x720,1920x1080,1920x1200
Sync Type	Independent horizontal and vertical signal
Interface type	DB15FM
HDMI/DVI output
Clock frequency	25Mhz-225Mhz
Standards	DVI1.0 HDMI1.4 HDCP1.2
Resolution	1024x768,1280x1024,1440x900,1360x768,1680x1050, 1600x1200,1280x720,1920x1080,1920x1200,4k, 576i,720P50/60,1080i50/60, 1080P25/30/50/60
Interface type	Type A 19pin HDMI or DVI-D
SDI output
Bit Rate	143Mbps～2.97Gbps
Standards	SMPTE 259M、292M、344M、424M , compatible with SMPTE291 in audio
Interface type	BNC
HDBaseT output
Transmission distance		≤100m (cat5,cat6)
Max resolution		1920x1080@60
HDCP standard		HDCP1.2
Optical fiber output
Optical interface		LC
Wave length		850nm,1310nm，1550nm are optional
Transmission mode		Multi-mode and single-mode are optional
Rate		3Gbps
Transmission distance		2Km,10Km,20Km,40Km,80Km are optional

Analog Audio Output

Interface	3.5mm stereo jack
Level	0.5-2.0Vp-p
Impedance	600Ω

Power Consumption

Hybrid input card	8W/card
SDI input card	10W/card
HDBaseT input card	30W/card
Optical input card	20W/card
Hybrid output card	10W/card
HDBaseT output card	20W/card
Optical fiber output card	20W/card
3U without input or output card	20W
5U without input or output card	20W
10U without input or output card	40W
20U without input or output card	80W
