Product Description:

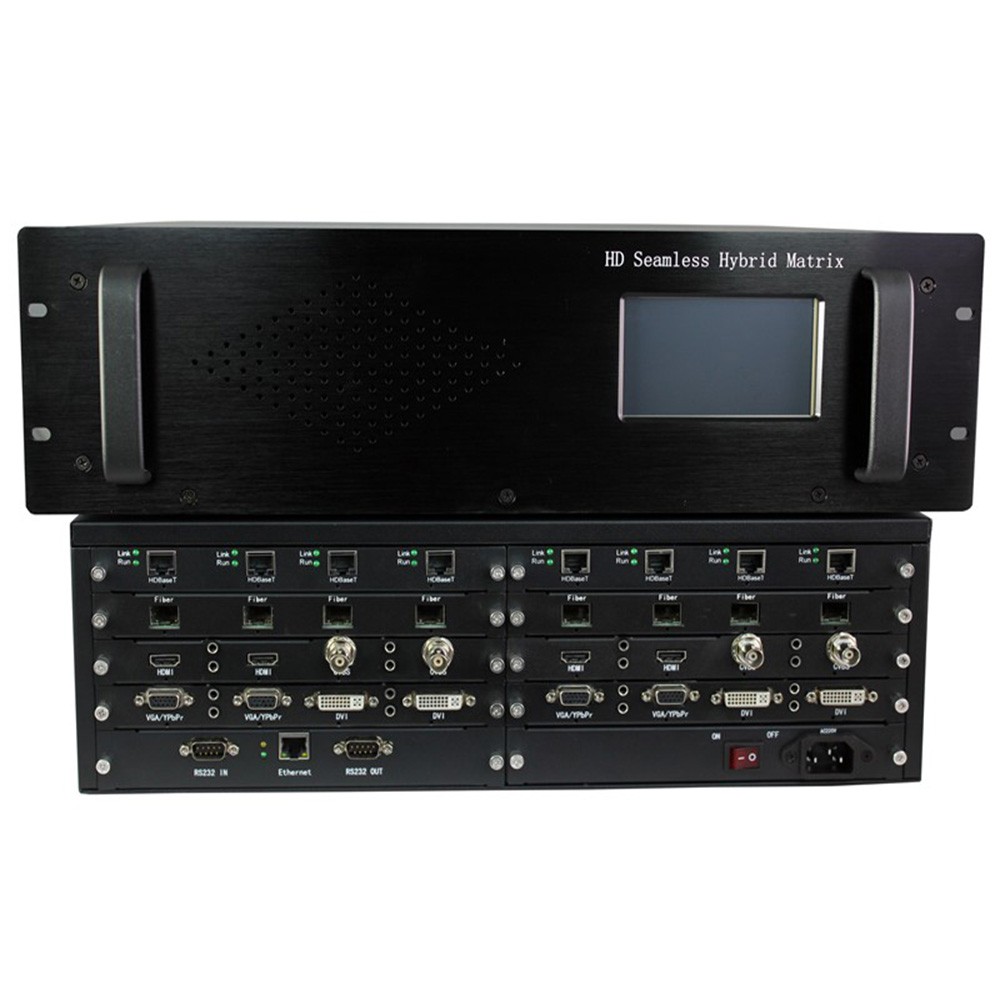

HDBase-T HDMI DVI SDI Matrix 16 inputs 8 outputs


AM-SM168 is a cutting-edge seamless hybrid switching matrix designed to address the shortcomings of traditional video matrices. It boasts several features and functionalities that enhance its performance and versatility.


Feature:


Full-Digital Switching: Ensures seamless transitions between inputs without any flicker, black screens, or signal interruption.


Versatile Signal Compatibility: Supports a wide range of input and output signals including CVBS, VGA, YPbPr, HDMI, DVI, SDI, HDbaseT, and optical fiber.


Real-Time Seamless Switching: Provides instantaneous switching between input sources without any delay, ensuring smooth operation.


Adaptive Input Resolution: Automatically adjusts input resolution to match the requirements of the connected devices, with adjustable output resolution for added flexibility.


HDMI Interface Compatibility: Supports HDMI 1.4 and DVI 1.0 standards, including HDCP 1.2 compliance, making it compatible with various devices such as Blu-ray players and supporting DeepColor.


High-Quality Digital Processing: Utilizes advanced digital processing for analog inputs (CVBS, VGA, YPbPr), offering high sampling frequencies and internal image processing for true color reproduction and resolutions up to 1920x1200@60Hz.


Advanced CVBS Input Features: Integrates 3D adaptive comb filter and de-interlace processing for CVBS inputs, automatically identifying PAL and NTSC standards.


SDI Input Support: Compatible with 3G/HD/SD-SDI formats, supporting various video standards including SMPTE 259M, 292M, 344M, and 424M, as well as audio embedding and de-embedding (SMPTE291).


Audio Support: Enables input and output of analog audio signals, providing comprehensive audio integration capabilities.


User-Friendly Interface: Equipped with a touch-screen interface (available in 4.3 inch or 9.7-inch sizes) for intuitive operation and quick configuration.


Scene Store and Recall: Allows users to save and recall predefined configurations for efficient operation.


Control Options: Supports RS232 and Ethernet control with an open control protocol, facilitating integration with third-party control systems.


Site Protection: Features protection mechanisms to safeguard settings and configurations in case of power loss.


Redundant Power Supply (Optional): Offers optional 1+1 redundant power supply for enhanced reliability.


Industrial Cabinet Design: Housed in a standard plug-in industrial cabinet, with 1 card and 4 channels, ensuring durability and ease of installation.


Components of Equipment
Cabinet


Size(L*D*H)

Maximum input channel

Maximum output channel

3U(43x43x13cm)

       16

      16

5U(43x43x22cm)

       32

      32

11U(43x43x49cm)

       72

      72

20U(43x43x90cm)

144

144



Video Input Signal


CVBS input

Impedance

75Ω

Level

1Vp-p

TV System

Adaptive NTSC, PAL

Interface type

BNC

YPbPr input

Impedance

75Ω

Level

0.7V

Resolution

480i,576i,480P,576P,720P,1080i50/60, 1080P25/30/50/60

Sync Type

SOG

Interface type

DB15FM,(1-Cr,2-Y,3-Cb)

VGA input

Impedance

75Ω

Level

0.7V

Resolution

Common resolution of VESA, 640x480@60Hz~1920x1200@60Hz

Sync Type

Independent horizontal and vertical signal

Interface type

DB15FM

HDMI/DVI input

Clock frequency

25Mhz-225Mhz

Standards

DVI1.0 HDMI1.4 HDCP1.2

Interface type

Type A 19pin HDMI or DVI-D

SDI input

Bit Rate

143Mbps~2.97Gbps

Standards

SMPTE 259M、292M、344M、424M, compatible with SMPTE291 in audio

Interface type

BNC

HDBaseT iuput

Transmission distance

 ≤100m (cat5,cat6)

Max resolution

 1920x1080@60

HDCP standard

 HDCP1.2

Optical fiber input

Optical interface

 LC

Wave length

850nm,1310nm,1550nm are optional

Transmission mode

Multi-mode and single-mode are optional

Rate

3Gbps

Transmission distance

2Km,10Km,20Km,40Km,80Km are optional

Analog Audio Input


Interface

3.5mm stereo jack

Level

0.5-2.0Vp-p

Impedance

600Ω

sampling frequency

48Khz

Video Output Signal


YPbPr output

Impedance

75Ω

Level

0.7V

Resolution

576i,720P50/60,1080i50/60, 1080P25/30/50/60

Sync Type

SOG

Interface type

DB15FM,(1-Cr,2-Y,3-Cb)

VGA output

Impedance

75Ω

Level

0.7V

Resolution

1024x768,1280x1024,1440x900,1360x768,1680x1050,
1600x1200,1280x720,1920x1080,1920x1200

Sync Type

Independent horizontal and vertical signal

Interface type

DB15FM

HDMI/DVI output

Clock frequency

25Mhz-225Mhz

Standards

DVI1.0 HDMI1.4 HDCP1.2

Resolution

1024x768,1280x1024,1440x900,1360x768,1680x1050,
1600x1200,1280x720,1920x1080,1920x1200,4k, 576i,720P50/60,1080i50/60, 1080P25/30/50/60

Interface type

Type A 19pin HDMI or DVI-D

SDI output

Bit Rate

143Mbps~2.97Gbps

Standards

SMPTE 259M、292M、344M、424M , compatible with SMPTE291 in audio

Interface type

BNC

HDBaseT output

Transmission distance

 ≤100m (cat5,cat6)

Max resolution

 1920x1080@60

HDCP standard

 HDCP1.2

Optical fiber output

Optical interface

 LC

Wave length

850nm,1310nm,1550nm are optional

Transmission mode

Multi-mode and single-mode are optional

Rate

3Gbps

Transmission distance

2Km,10Km,20Km,40Km,80Km are optional

Analog Audio Output


Interface

3.5mm stereo jack

Level

0.5-2.0Vp-p

Impedance

600Ω

 Power Consumption


Hybrid input card

      8W/card

SDI input card

     10W/card

HDBaseT input card

     30W/card

Optical input card

     20W/card

Hybrid output card

    10W/card

HDBaseT output card

     20W/card

Optical fiber output card

     20W/card

3U without input or output card

     20W

5U without input or output card

      20W

10U without input or output card

      40W

20U without input or output card

      80W

Operating Conditions


Input Voltage

AC 90V~260V 50/60Hz

Operating temperature

0~50℃

Storage temperature

0~65℃

Operating humidity

<90%RH
