16 Channels HDMI Multi-viewer

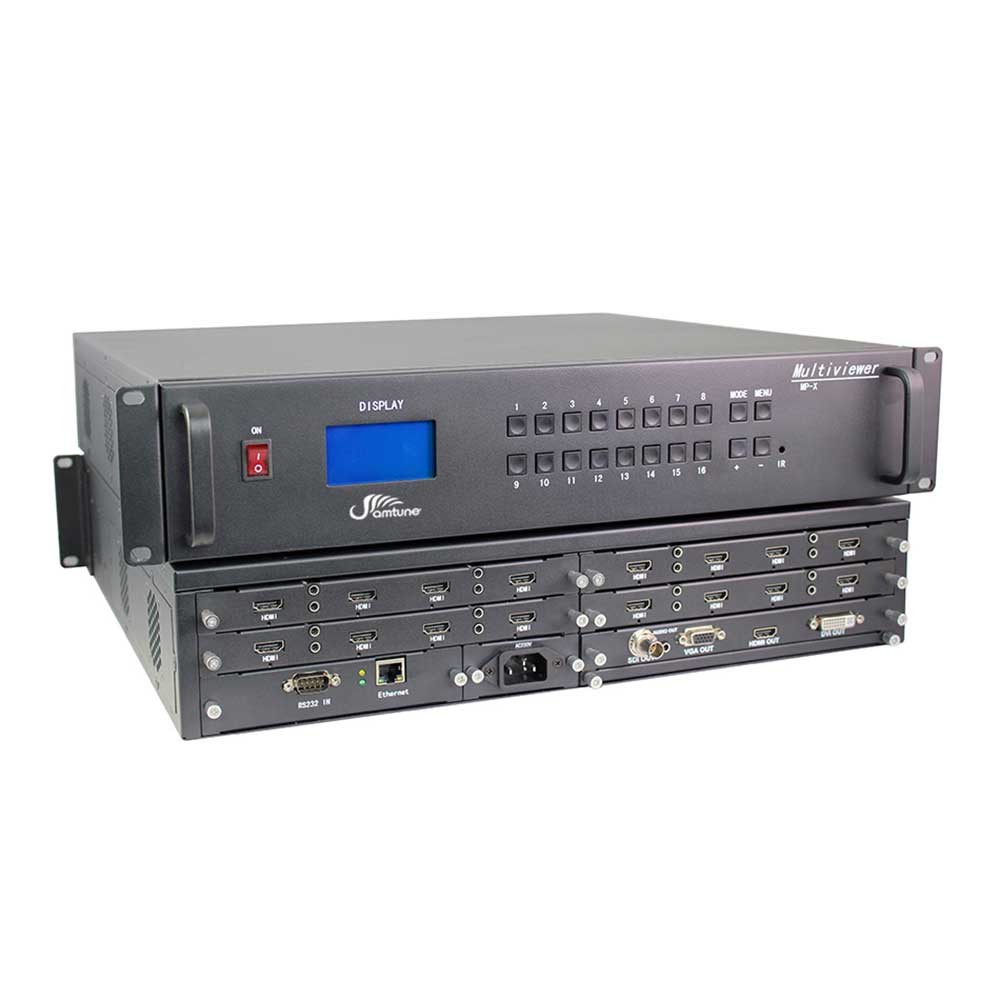

 AM-PXH16 HDMI 16 Channels Multi-Viewer

Brief introduction
Discover the AM-PXH16 high-definition multi-video multi-viewer, a professional graphics processing device designed to synthesize multiple channels of video signals into a single high-definition output. With customizable window size, display position, and video scaling options, this versatile device empowers users to tailor their viewing experience to their exact specifications. Achieve uniform output of HD videos effortlessly with the AM-PXH16 multi-viewer.

Feature:

• Flexible Card Structure: Easily expandable with one card featuring 4 inputs. Fits 2 inputs in a 1U chassis and 4 cards in a 2U chassis for up to 16 inputs.

• Versatile Input Support: Compatible with various input signal sources including CVBS, HDMI (DVI), VGA (YPbPr), and SDI, allowing for mixed input configurations.


• High-Quality Image Processing: Internal 10-bit processing ensures true color reproduction for exceptional visual fidelity.


• Extensive Input Compatibility: Supports a wide range of resolutions and standards including VGA (YPbPr) up to UXGA@75Hz/WUXGA@60Hz, HDMI (DVI) with HDCP1.2 compliance, and SDI supporting 3G/HD/SD-SDI at rates from 143Mbps to 2.97Gbps.


• User-Friendly Controls: Enables quick operation through local buttons or a convenient remote control, with additional support for computer software control via RS232 and Ethernet interfaces.


• Enhanced Security: Includes power-off site protection for added reliability in various environments.


• Customizable Display: Offers support for custom screen sizes, layouts, and scene saving, allowing users to tailor their viewing experience to their preferences.


• 4K Output Capability: Supports 4K (3840x2160/30) output, providing high-resolution display options (note: 2K output is not compatible)


Parameters
