Maximum sampling frequency 205Mhz UXGA@75Hz/WUXGA60Hz 1920x1200@60Hz

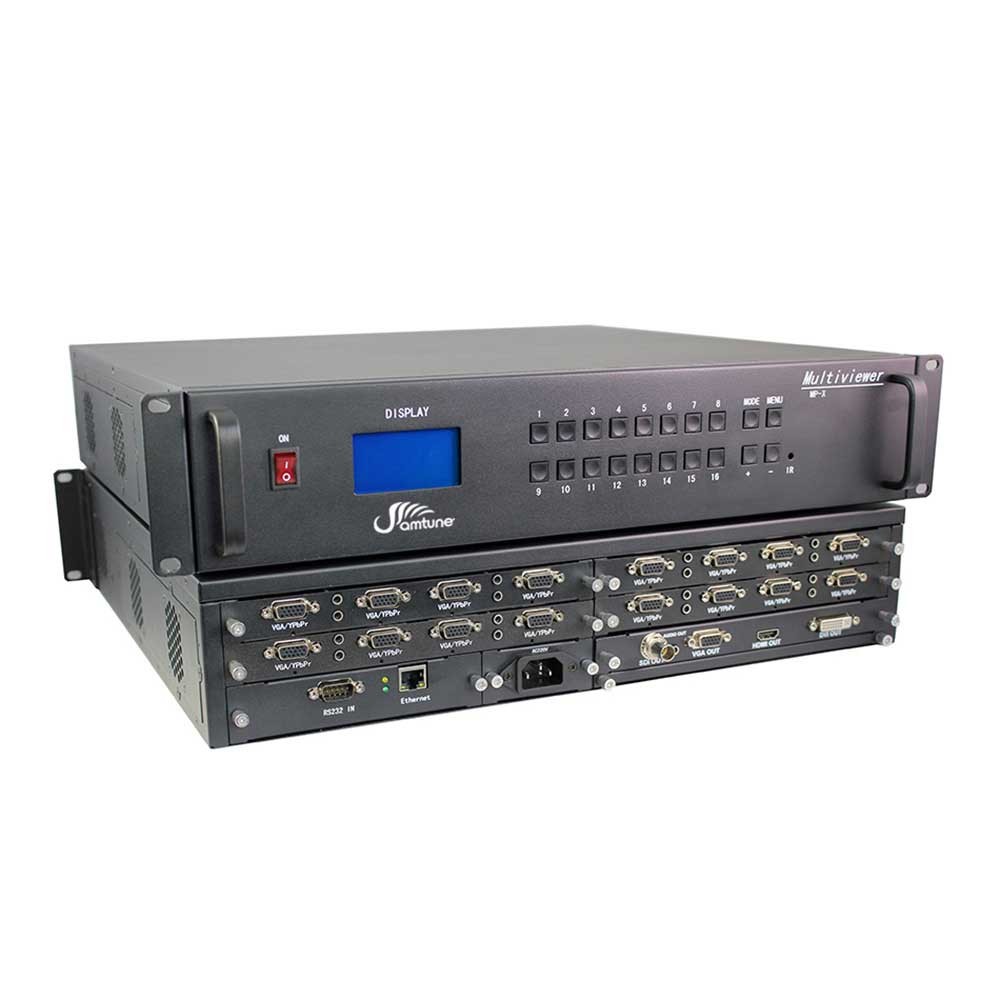

AM-PXV16 VGA 16 Channels Multi-Viewer
Brief introduction
Discover the AM-PXV16 high-definition multi-video multi-viewer, a professional graphics processing device designed to seamlessly combine multiple video signals into a single high-definition output. With customizable window sizing, display positioning, and video scaling capabilities, users can tailor their viewing experience to their exact preferences. Experience uniform HD video output with the AM-PXV16 multi-viewer.
Feature:
Flexible Card Structure: Easily expandable with one card featuring 4 inputs. Fits 2 inputs in a 1U chassis and 4 cards in a 2U chassis for up to 16 inputs.
Versatile Input Support: Compatible with various input signal sources including CVBS, HDMI (DVI), VGA (YPbPr), and SDI, allowing for mixed input configurations.
High-Quality Image Processing: Internal 10-bit processing ensures true color reproduction for exceptional visual fidelity.
Extensive Input Compatibility: Supports a wide range of resolutions and standards including VGA (YPbPr) up to UXGA@75Hz/WUXGA@60Hz, HDMI (DVI) with HDCP1.2 compliance, and SDI supporting 3G/HD/SD-SDI at rates from 143Mbps to 2.97Gbps.
User-Friendly Controls: Enables quick operation through local buttons or a convenient remote control, with additional support for computer software control via RS232 and Ethernet interfaces.
Enhanced Security: Includes power-off site protection for added reliability in various environments.
Customizable Display: Offers support for custom screen sizes, layouts, and scene saving, allowing users to tailor their viewing experience to their preferences.
4K Output Capability: Supports 4K (3840x2160/30) output, providing high-resolution display options (note: 2K output is not compatible)
Parameters
Model series | AM-PXV16 |
Input signal(optional) | HDMI/SDI/DVI/VGA/AV/YPbPr |
Input resolution | 4k, 1080p,1024x768,commonly used resolutions |
Output signal format | HDMI/SDI/DVI/VGA/AV/YPbPr |
Output resolution | Up to 1920*1200/60HZ, 4k |
System control software | Special control software |
Power Supply | Redundant power supply 110-220VAC, 50/60Hz |
Working temperature | -20°C——60°C |
Working Humidity | 5-95% |
Case specification | 2U/4Ustandard rack mount chassis |
Serial Control Interface | RS-232,9-pin female, Type-D |
Working time | 365*7*24hrs |
CVBS input | |
Impedance | 75Ω |
Level | 1Vp-p |
TV System | Adaptive NTSC, PAL |
Interface type | BNC |
YPbPr input | |
Impedance | 75Ω |
Level | 0.7V |
Resolution | 480i,576i,480P,576P,720P,1080i50/60, 1080P25/30/50/60 |
Sync Type | SOG |
Interface type | DB15FM,(1-Cr,2-Y,3-Cb) |
VGA input | |
Impedance | 75Ω |
Level | 0.7V |
Resolution | Common resolution of VESA, 640x480@60Hz～1920x1200@60Hz |
Sync Type | Independent horizontal and vertical signal |
Interface type | DB15FM |
HDMI/DVI input | |
Clock frequency | 25Mhz-225Mhz |
Standards | DVI1.0 HDMI1.4 HDCP1.2 |
Interface type | Type A 19pin HDMI or DVI-D |
SDI input | |
Bit Rate | 143Mbps～2.97Gbps |
Standards | SMPTE 259M、292M、344M、424M, compatible with SMPTE291 in audio |
Interface type | BNC |
